1008-07 – Circular Antenna, 40 cm
1008-07 - Circular Antenna, 40 cm

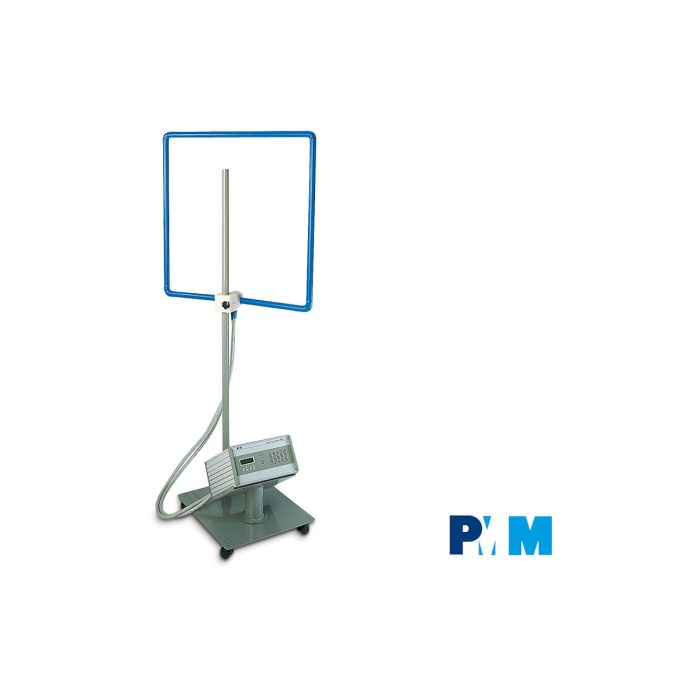

The 1008-07 is an integrated system for magnetic field immunity test according to IEC 1000-4-8 & EN 61000-4-8. The system is composed by a programmable current generator, 1008-07, and a loop antenna that is available in different sizes to select according to the EUT dimensions.
The generator features output current sensing to control the stability of the magnetic field produced by the loop antenna respect to variations due to cable heating, connections and power line fluctuations.
An audible alarm is generated during the test to warn the user.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| I/O Interface | RS-232; user port for hardware interlock key and external switch (protocol available for software developers) |
| Operating Temperature | -10 °C to + 40 °C |
| Power Supply | 230 Vac ± 10 % - 50/60 Hz, 16 A max |
| Dimensions |
Generator: 365 x 200 x 480 mm Cart (w 35deg support): 550 x 360 x 650 mm High current cable (x2): Ø 19 x 1500 mm Swivel joint: 140 x 140 x 200 mm Loop double mast: Ø 40 x 1900 mm TOTAL: 550 x 2000 x 650 mm |
| Weight |
Generator: 28.0 kg Cart (w 35deg support): 23.6 kg High current cable (x2): 1.6 kg Swivel joint: 2.4 kg Loop double mast: 1.7 kg TOTAL: 57.3 kg |
| Current Waveform | 50/60 Hz, sine waveform |
| Display | LCD, four 20-character lines |
| LED Indicators | Operate, Standby |
| Output Voltage Mode | 4 Vac max |
| Continuous And Intermittent Mode |
Max output current: 170 A (continuous); 1200 A (intermittent) Internal timer: 1 to 200 h (continuous); 1 to 5 sec (intermittent) Timer resolution: 1 min (continuous); 1 sec (intermittent) |
| Manual Mode | Max output current 16 A or 160 A (selectable) |
| Storage Temperature | -40 °C to +50 °C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
