DC Voltage Variations and Telecom Transients Testing

The 4301 Series Telecom Test Systems have been specially designed for EMC testing of network telecommunications equipment and are the best systems available for producing the waveforms required for transient voltage measurements as described in GR-1089 Section 10 and ATIS-0600315.2007.

Key Performance Capabilities:

  • Slew rates up to 60 V/µsec.
  • Up to 240A DC at +50VDC or –50VDC (4301-240 configuration).
  • Can provide pulses of up to 800 amps at voltages of up to ±100V (4301-240 configuration).
  • Adjustable compensation allows the system to maintain a 50V/2 µsec rise-time over a wide range of current outputs.

The 4301 includes a SDG2042X Function/Arbitrary Waveform Generator, which comes pre-programmed and integrated into the 4301 system. Together, the 4301 with Siglent AWG provide a complete solution for GR-1089 Section 10/ATIS-0600315.2007 testing.

The 4301 system is available in four standard configurations and is capable of slew rates of up to 60 V/µsec. In its largest configuration (model 4301-240), the 4301 system can provide up to 240A of DC at ±50VDC and can provide pulses of up to 800 amps at voltages of up to ±100V. The system has a voltage gain of 20 and can accept input voltages of up to ±10V.

Lower power versions of the 4301 amplifier solution are available for users with lower current requirements: 4301-180 (180A), 4301-120 (120A) and 4301-60 (60A).

Telecom Test Systems

  • Complete solution for GR-1089 Section 10 and ATIS-0600315.2007 DC Voltage Variations and Transients Testing
  • Siglent SDG2042X Function/Arbitrary Waveform Generator comes pre-programmed and integrated into the 4301 system
  • Four selectable compensation settings
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value

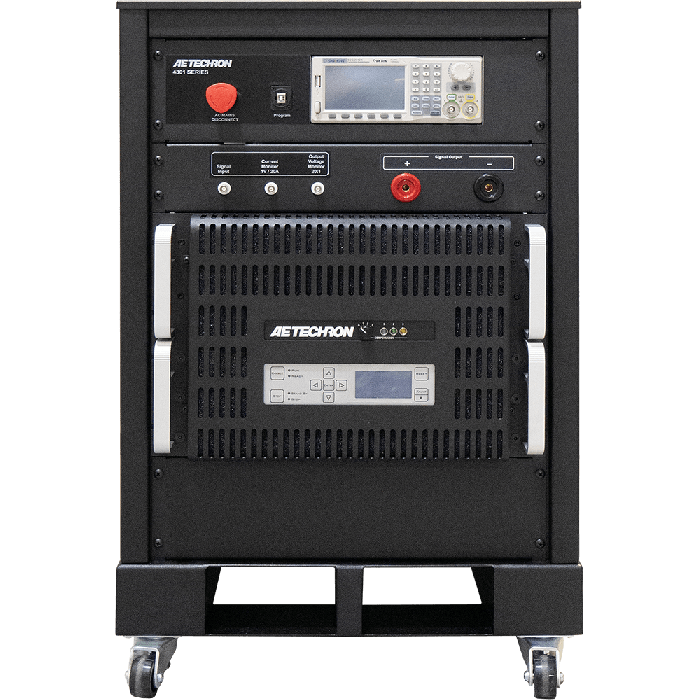

Input and Output Connectors

The unit’s inputs and outputs are located on the cabinet’s front panel.

  • Signal Input: A BNC connector accepts input from an arbitrary waveform generator.
  • External Trigger Output: A BNC connector provides the signal to the Trigger In connector on the AWG.
  • Current Monitor Output: A BNC connector provides scaled voltage output for current monitoring.
  • Voltage Monitor Output: A BNC connector provides scaled voltage output for voltage monitoring.
  • Signal Output: 250A Pin Plug connectors (or optional Anderson SB350 connectors) provide signal output to the equipment under test.
  • AWG: A Siglent SDG2042X Function/Arbitrary Waveform Generator is integrated into the 4301 system. The AWG comes pre-programmed with the required test waveforms and is mounted securely within the 4301 cabinet. A GPIB port located next to the AWG on the system front panel allows communication with the AWG through a user-supplied computer.
Controls

The unit’s indicators and controls are located on the 4301 amplifier modules. The 4301 models contain between one and four amplifier modules.

  • LED Displays: Indicators for Run, Ready, Standby, and Stop status, and Fault conditions in the output stage.
  • LCD Display: Can be user-configured for up to four simultaneous displays reporting one, two, or all four of the following: Voltage Peak, Voltage RMS, Current Peak and Current RMS. When the amplifier module is in a Fault condition, the LCD Display lists the type of fault condition and gives suggested corrective action.
  • Navigation Buttons: The Navigation Buttons provide four arrow keys to allow navigation through the various LCD display options.
  • Soft Touch Switches: Soft touch switches allow the selection of Run (Enable), Stop and Reset functions.
  • Compensation Setting: A four-position rotary control allows the selection of optimum compensation settings according to the total current required at the system output.
  • Compensation LEDs: When the amplifier module is receiving AC power, the colored LED associated with the selected Compensation setting will be lit.
Protection

Fault: The Fault LED on an amplifier module will light and the error message “Warning! Output Device Fault” will be displayed on the LCD screen if the module’s output stage stops operating. If this happens, contact AE TECHRON for servicing information.

AC Under/Over Voltage Protection: If the AC line voltage rises or drops more than 10% of the nominal operating voltage, the system will be forced to Standby and the error message “Warning! Overvoltage” will be displayed on the LCD screen of the amplifier module(s).

Over Current: Each amplifier module contains breaker protection on both the unit’s main power supply and the low-voltage supplies. The 4301 system provides a Main Power breaker switch and an Auxiliary Power breaker switch located inside the cabinet rear door.

Over Temperature: Each amplifier module contains separate output transistor, heat-sink and transformer temperature monitoring and protection circuits.

Physical Characteristics

Cabinet: Welded steel cabinet with a textured black, powder-coat finish.

Main Power: A main power selector located on the system front panel controls the main power supply to the system.

Operating Temperature: 10°C to 50°C (50°F to 122°F), Maximum Output Power de-rated above 30°C (86°F).)

Humidity: 70% or less, non-condensing.

Cooling: The 4301 system amplifier modules employ forced air-cooling from front to back through removable filters via six 100 ft3/min. fans per unit. No space is required between rack-mounted modules. Provide room at the cabinet back to allow for proper airflow.


4301-60:
27 H x 34 W x 22.5 D in
68.6 H x 86.4 W x 57.2 D cm
307 lbs (139 kg) (approx.)

4301-120:
52 H x 22 W x 31.5 D in
132 H x 55.9 W x 80 D cm
454 lbs (206 kg) (approx.)

4301-180:
74 H x 22 W x 31.5 D in
188 H x 55.9 W x 80 D cm
697 lbs (316 kg) (approx.)

4301-240:
74 H x 22 W x 31.5 D in
188 H x 55.9 W x 80 D cm
850 lbs (386 kg) (approx.)

Options Anderson SB350 output connectors can be substituted for the standard 250A Pin Plug connectors.
Max. Pulse DC Current (up to ±100VDC)

4301-60: 200A

4301-120: 400A

4301-180: 600A

4301-240: 800A

Max. Continuous DC Current (±50 VDC)

4301-60: 60A

4301-120: 120A

4301-180: 180A

4301-240: 240A

Voltage Gain 20
Input Voltage ±10V, unbalanced
Compensation Setting

For current required at system output:

4301-60
Setting 0 off: 0 to 6A
Setting 1: 6 to 12A
Setting 2: 12 to 50A
Setting 3: 50 to 60A

4301-120
Setting 0 off: 0 to 12A
Setting 1: 12 to 24A
Setting 2: 24 to 100A
Setting 3: 100 to 120A

4301-180
Setting 0 off: 0 to 18A
Setting 1: 18 to 36A
Setting 2: 36 to 150A
Setting 3: 150 to 180A

4301-240
Setting 0 off: 0 to 24A
Setting 1: 24 to 50A
Setting 2: 50 to 200A
Setting 3: 200 to 240A

Current Monitor Output

1V monitor output

4301-60: 20A output

4301-120: 40A output

4301-180: 60A output

4301-240: 80A output

Voltage Monitor Output

1V monitor output

4301-60: 20A output

4301-120: 10A output

4301-180: 10A output

4301-240: 10A output

Power Supply

Required AC Mains, three-phase, 47-60 Hz, five-conductor wiring (±10%)

4301-60:
208 VAC: 30A AC service
400 VAC: 15A AC service

4301-120:
208 VAC: 60A AC service
400 VAC: 30A AC service

4301-180:
208 VAC: 90A AC service
400 VAC: 45A AC service

4301-240:
208 VAC: 120A AC service
400 VAC: 60A AC service
