CIS-25 Test Kit

CIS-25 Test Kit

AE Techron

Aviation Conducted/Induced Susceptibility Testing

DO-160 Sections 18 and 19 Testing Kit

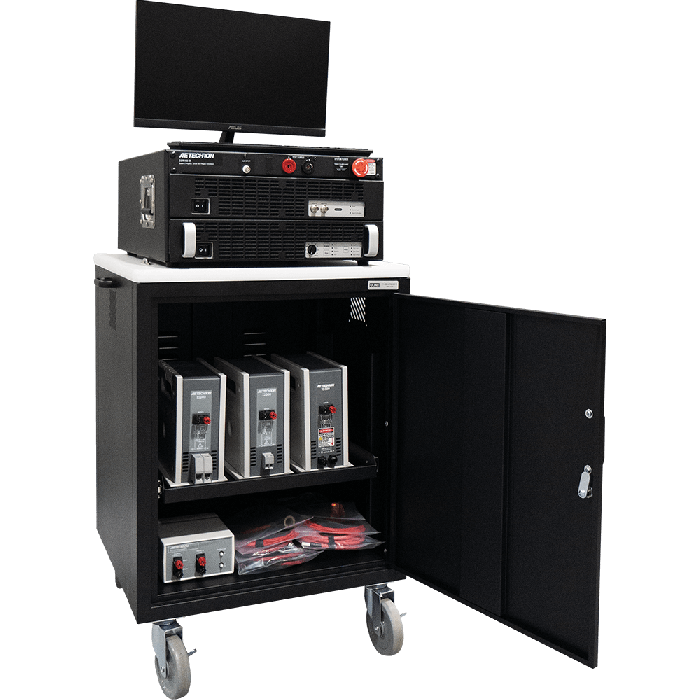

AE Techron’s CIS-25 Test Kit combines into a single, complete package the items needed to accurately test to important Aviation standards like DO-160 sections 18 and 19, Boeing, Airbus, and MIL STD 461. Included with the kit are three coupling transformers (T1000, T2000, and T3700), the CR 600 Chattering Relay accessory, and a secure storage cabinet to keep the equipment safe.

The CIS-25 test system comes with two hours of expert consulting provided by EMC Specialist Patrick G Andre, who will answer any questions you might have about set-up or testing.

For Testing to These Requirements:

  • DO-160 Section 18
  • DO-160 Section 19
  • Airbus ABD0100.1.8
  • MIL STD 461 (CS101)

The DSR 100-25 test system, which is included with the CIS-25 Test Kit, has power in reserve. Each DSR Series model provides continuous DC power as rated, and is able to provide 4X rated power for in-rush testing up to 200 ms (such as is required in DO 160 Section 16). Plus, the DSR 100-25 system includes the complete 3110A Standard’s Library, so the CIS-25 Test Kit can be used for many other tests.

The equipment is easy to set up and use; all elements in the kit are robust and will provide you with many years of trouble-free service.

Kit Includes:</h4

  • DSR 100-25 Test System
  • T 1000 Transformer
  • T 2000 Transformer
  • T 3700 Transformer
  • CR 600, Chattering Relay
  • Two Hours of Expert Consulting
  • Secure Storage Case
  • Plus all required cables and connectors
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Standards Testing List

Airbus ABD0100.1.8 Issue E

Airbus aBD0100 1.8.1 Issue C

Boeing-D6-36440E

DO160G Section 18

DO160G Section 19

MIL STD 461G

MIL STD 1275E

IEC 61000 4-19

EMC Test System Contents

Includes amplifier/power supply, waveform generator, and complete 3110A Standard’s Library

Output Current: 0A to 25A continuous
Peak Current: 50A for 200 mS
Bandwidth (-3dB),
Full Signal: DC to 300 kHz;
Small Signal: 3Vp-p to 1 MHz
Supply Voltage: Single-phase, 120V ±10%, 30A, 50/60 Hz. 230V, 15A version available
Output Range: –80V to +80V
Source Impedance: 3 mΩ + 2.2 µH
Operation: 4-quadrant, bi-polar operation
Output Rise Time: <3 µS
Noise Floor: 20 mV
Remote Control: LAN
Waveforms: Sine wave sweep, ripple (cranking), DC source, triangle wave, square wave, sawtooth wave
Control Functions: Trigger, fixed loop, variable loop, template playback, GPIO output, LAN output
Dimensions (HxWxD): 9.5 x 20 x 25 in. (24.1 x 50.8 x 63.5 cm)
Weight: Approximately 76.5 lbs. (35 kg)

Transformer Contents

T1000 Magnetic Field Susceptibility Transformer: For testing to DO-160 Section 19 and Boeing D6-16050-5 Section 7.2
Primary: 200 Vp maximum input
Secondary: 20.0 Vp maximum output
Dielectric Test: 1200 VDC

T2000 Low-Frequency Conducted Susceptibility Transformer: For testing to DO-160 Section 16 and 18
Transformer DC Resistance:
Primary: 0.076 ohms
Secondary: 0.021 ohms
Dielectric Test: 1500 VDC primary to secondary

T3700 Electric Field Susceptibility Transformer: For testing to DO-160 Section 19 and Boeing D6-16050-5 Section 7.2
Primary: 100 VRMS maximum or 1 ARMS, maximum
Secondary: 3700 VRMS maximum output
Dielectric Test:
Primary to Case: 5 kVDC
Secondary to Case: 5 kVDC

Chattering Relay Contents

CR 600 Chattering Relay Accessory: For testing to DO-160 Section 19.3.5
Coil Voltage: 24 VDC
Coil Current: 84 mA
Contact Rating: 30A
Typical Pulse Voltage: >700 Vpp

Connectors:
Amplifier: Dual binding posts
Radiating Loop: Dual binding posts
Oscilloscope: Dual turret connectors

Dimensions (HxWXD): 3.25 x 6.25 x 7.25 in. (8.3 x 15.9 x 18.4 cm)
Weight: 1.5 lbs. (0.68 kg)

Secure Storage

Locking Cabinet: Rolling storage cabinet locks to protect equipment
Load Capacity: 400 lbs.
Construction: Powder-coated steel with laminate wood top
Dimensions (HxWxD): 35 x 25 x 23 in. (88.9 x 63.5 x 58.4 cm)
Weight: 80 lbs. (36.3 kg)

EMC Testing Type Aviation
