Electric Vehicle High-Voltage Ripple Test System

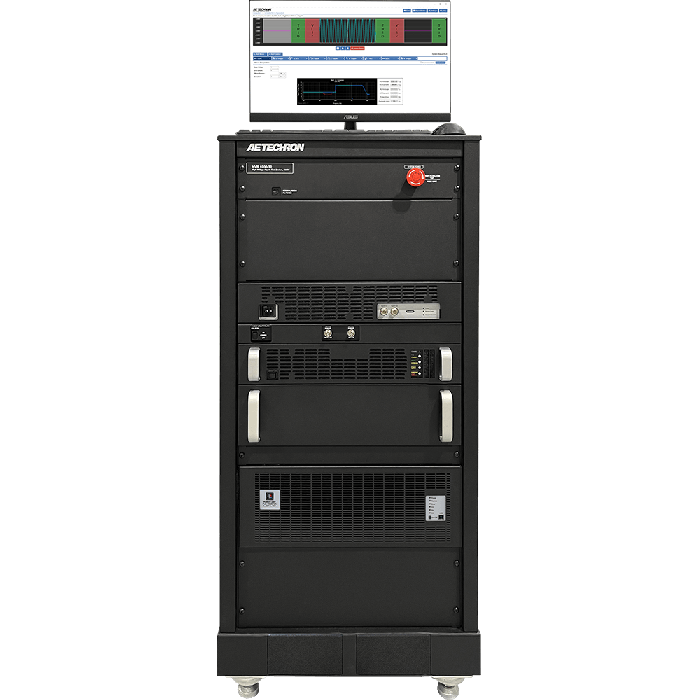

High-voltage electric vehicle testing is a rapidly growing automotive test requirement. With the HVR 1000, AE Techron introduces a complete high-voltage test system. This powerful new test system is designed for the electric vehicle (EV) testing industry, providing unparalleled accuracy and efficiency in assessing EV component immunity to ripple voltages.
Focused on standards compliance, this system offers ease of use, rugged construction, and comprehensive system protections and limits. The HVR 1000 is designed to be forgiving of accidental misuse while being safe for the user and for the equipment being tested.
Compared to other options, this system features reduced user training time, greater system uptime, customisable test modifications, no recurring license fees (future updates to standards are included in the initial purchase price), and a small in-lab footprint.
System Features:
- High-voltage capability: Generates ripple voltages up to 1000V peak-to-peak
- Precise waveform generation: Produces accurate sine, triangle, and custom waveforms from DC to 200 kHz
- Integrated safety features: incorporating multiple layers of protection
- User-friendly interface: intuitive controls and data logging
- Expanded testing capabilities: Standards library and AC supply can be used for hundreds of automotive and aviation standards tests
The HVR 1000 offers several advantages compared to other options:
- Easy-to-use software reduces user training time
- Multi-layer current protection
- Greater system uptime
- Customizable test modifications
- No recurring license fees (future standards updates included)
- Small in-lab footprint
Key Performance Capabilities:
Ripple:
- Frequency range: 10 Hz to 200 kHz
- Voltage/Current: Up to 50 Vp, 200 Ap
(Higher current options available) - Adjustable ripple current limit
System:
- Output voltage: Up to 1000V
- Power/Current: Up to 60 kW, 160A DC
(Higher voltage options available) - Adjustable DC current limit
- Bi-directional DC capability
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Voltage Output Range |
DC: 0 – 1000V AC: 0 – 50Vp |
| Output Current Range |
DC: 0 – 80A AC: 0 – 50Ap, 200Ap |
| Ripple Bandwidth | 10 Hz to 200 kHz |
| DC Source Impedance |
0.4 – 650Ω* * For high-voltage ripple testing, this impedance value will change. |
| Operation |
AC: 4-quadrant, bi-polar operation DC: 2-quadrant, bi-directional operation |
| Output Rise Time, DC Supply | 10 ms from 10% to 90% of full-scale voltage |
| Input and Output Connectors |
System
Signal Generator
DC Supply: USB port for factory configuration |
| Status Displays |
Signal Generator: LEDs for Power, System Fault, Signal-In Enabled Amplifier: LEDs for Run/Standby status, Signal presence/Overload condition, Power Supply Fault, Overtemp/Over Current DC Supply: LEDs for Power, Remote control, Error, CC operation, DC output On, DC output Off |
| Controls |
Software
Signal Generator: Front-panel on/off power switch Amplifier: Front-panel Run/Standby switch DC Supply: Front-panel push button for factory configuration |
| Protection |
Amplifier,
DC Supply,
|
| Physical Characteristics |
AC Supply Requirements: 3-phase 400V-480V AC ±10%, 30A, 50/60 Hz Operating Environment,
Cooling: Forced-air fans Dimensions (HxWxD): 49.64 x 22.22 x 39.58 inches (126.09 x 56.44 x 100.53 cm) Weight: Approximately 300 lbs. (136 kg) |
| Standards Testing List |
Automotive Standards MBN LV123 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
