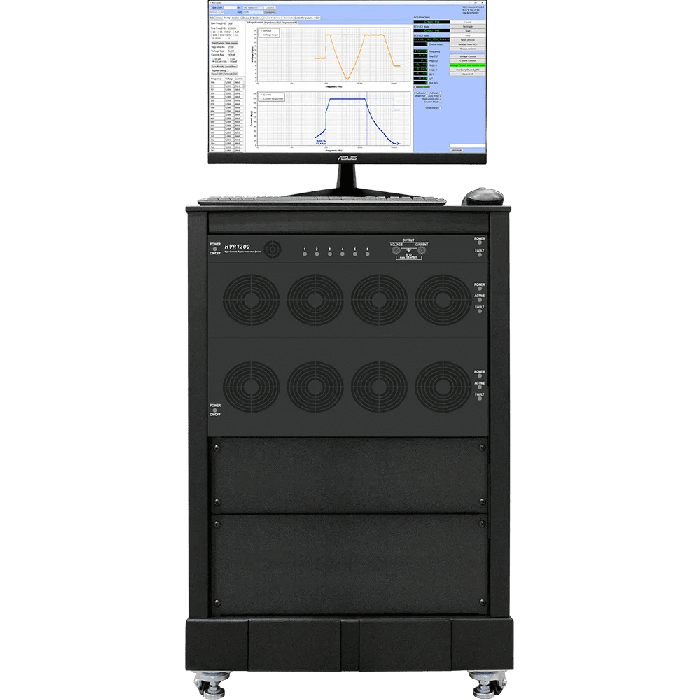

HVR1200RG

HVR1200RG

AE Techron

High-Current Ripple Generator System

The HVR 1200RG was designed from the ground up for this specific test, making it highly reliable without the need for tacked-on protection systems. Protection systems that can cause nuisance interventions and dramatically extend test times. Some DUTs can cause significant noise, creating conditions that can cause other test solutions great difficulty. Noise-rejecting monitoring circuits are built into the HVR 1200RG, which allow for accurate testing in conditions where DUT noises are higher than ripple test signals.

High-voltage EV testing is new. The standards and test levels are frequently changing, and customers often request test levels that exceed those specified in published standards. Modular, expandable design and field configurability make the HVR 1200RG a great solution for testing all major auto makers and standards now and in the future.

System Components:

  • Ripple Control Unit (RCU): Ripple Generator and Software
  • Power Module
  • Shielded Coupling Network: DC + AC Current Sensor (Danisense DM1200ID)

System Features:

  • Max. Ripple Current: 100Ap – 600Ap
  • Max. Ripple Voltage: 0 – 150Vp / 300Vp-p
  • Frequency Range: 150 Hz – 300 kHz
  • Supported DC Voltages: 0 to 1200 V, or 2000V in bridged configuration
  • Data Gathered: Tracks and reports Voltage, Current, and Impedance
  • Rugged: Protected against all kinds of DUT failure (including failure to a short when DUT under full load)
  • Compatibility: Most HV Standard DC power supplies
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Voltage Output Range 0 to 1200 V, or 2000V in bridged configuration
Standards Testing List

Automotive Standards

MBN LV123
ISO 21498-2
MAN CVS 43:2021-01
VW 80300
VW 80303
BMW GS95023
Stellantis CS.00245

Bandwidth 150Hz - 300kHz
EMC Testing Type Automotive
Volts Peak 75
Amps Peak

HVR 1200RG-100: 100
HVR 1200RG-200: 200
HVR 1200RG-300: 300
HVR 1200RG-400: 400
HVR 1200RG-500: 500
HVR 1200RG-600: 600

Mains Power Single Phase, 110 - 240VAC
Communication RS485 / Ethernet
Testing Applications

HVR 1200RG-100
- HVAC Compressors
- HV Pumps
- D/DC Converters
- Small Inverters

HVR 1200RG-200
- HVAC Compressors
- HV Pumps
- D/DC Converters
- Small Inverters

HVR 1200RG-300
- Medium Power Converters
- HV Axle Drives
- Small Batteries


HVR 1200RG-400
- Medium Power Converters
- HV Axle Drives
- Medium Batteries

HVR 1200RG-500
- Medium Power Converters
- HV Axle Drives
- Medium Batteries

HVR 1200RG-600
- High Power Converters
- HV Axle Drives
- Large Batteries

More Information
Attribute Value
Data Sheet Click here to view
