DT4221
DT4221
Hioki
Digital Multimeter
Premier Pocket DMM with CAT IV 300 V, CAT III 600 V Safety

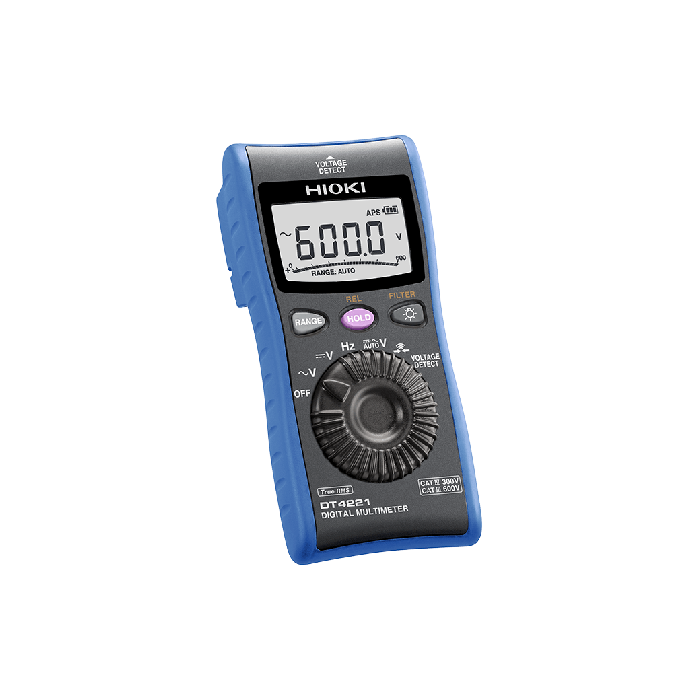

The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4221 is a pocket-sized digital multimeter designed specifically for electrical work requiring optimal safety, with ±0.5% DC V accuracy and wide 40 Hz to 1 kHz AC V bandwidth.
CAT IV 300 V, CAT III 600 V
Key Features
- Achieving a high level of safety in a compact body and lightweight design
- Resistance and diode testing functions omitted by design in pursuit of added safety (DT4221)
- Voltage detection function (DT4221)
- Robust design capable of withstanding a drop from a height of 1 m
- ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
- Broad -10°C to 50°C (14°F to 122°F) operating temperature range
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | LR03 alkaline battery (40h) |
| Display | 4-digit LCD (6000 digits, bar graph) |
| Dimensions and Weight | 72 × 149 × 38 mm (190 g) |
| Other Functions | Filter, Auto power save, Display hold |
| Accessories | Test lead, Holster, Manual, Battery |
| DC Voltage range | 600.0 mV - 600.0 V (±0.5%) |
| AC Voltage range | 6.000 V - 600.0 V (±1.0%) |
| Frequency Range | 99.99 Hz - 9.999 kHz (±0.1%) |
| Continuity Test | Threshold ON: 25 Ω, OFF: 245 Ω |
| Display Refresh Rates | 5 times/sec (varies by function) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
