DT4252
DT4252
Hioki

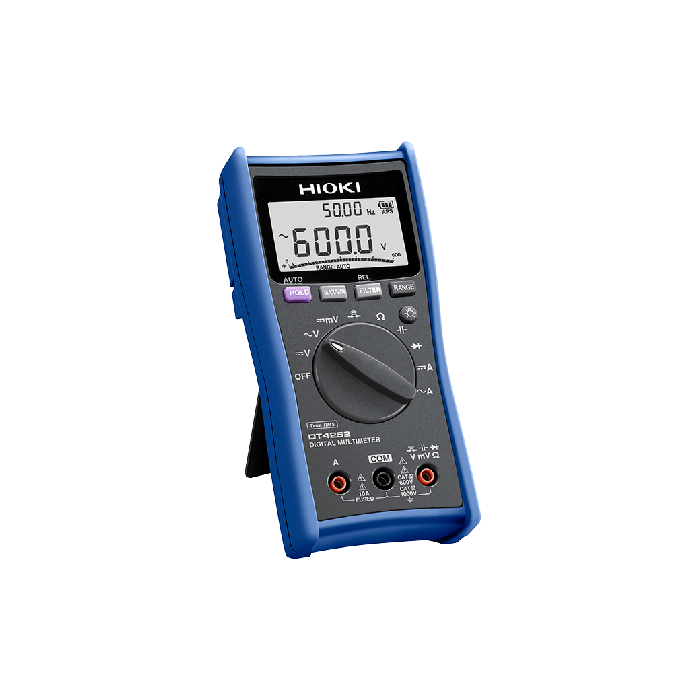

Digital Multimeter DT4252 - Standard DMM that Delivers Top Safety and Reliability
- General Purpose Testers with Rich Measurement Functions
The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4252 is a digital multimeter designed specifically for general purpose testing, with ±0.3% DC V accuracy, direct current input and wide 40 Hz to 1 kHz bandwidth.
CAT IV 600 V, CAT III 1000 V
More Information
Attribute
Value
Key Features
±0.3% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics Measure up to 10A with direct input Dual display lets you check voltage and frequency simultaneously Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms) USB communications function supports PC measurements (optional)
Basic Specifications
DC Voltage range
600.0 mV to 1000 V, 5 ranges
AC Voltage range
6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz - 1 kHz
AUTO AC/DCV
N/A
Resistance range
600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±5 dgt.
DC Current range
6.000 A / 10.00 A, 2 ranges, Basic accuracy: ±0.9 % rdg. ±5 dgt.
AC Current range
6.000 A / 10.00 A, 2 ranges,
AC Current range (use with Clamp on probes)
N/A
Voltage detection (50/60 Hz)
N/A
Capacitance range
1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency range
AC V, AC A measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges, 99.99 kHz (only for AC V)
Continuity check
Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED), [OFF]: 245 Ω or more
Diode test
Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less,
Other functions
Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
Display
Main and sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates
5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s )
Power supply
LR03 alkaline batteries ×4, Continuous use: 130 hours (back light OFF)
Dimensions and mass
84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, 390 g (13.8 oz) (with batteries and holster)
Accessories
Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4
