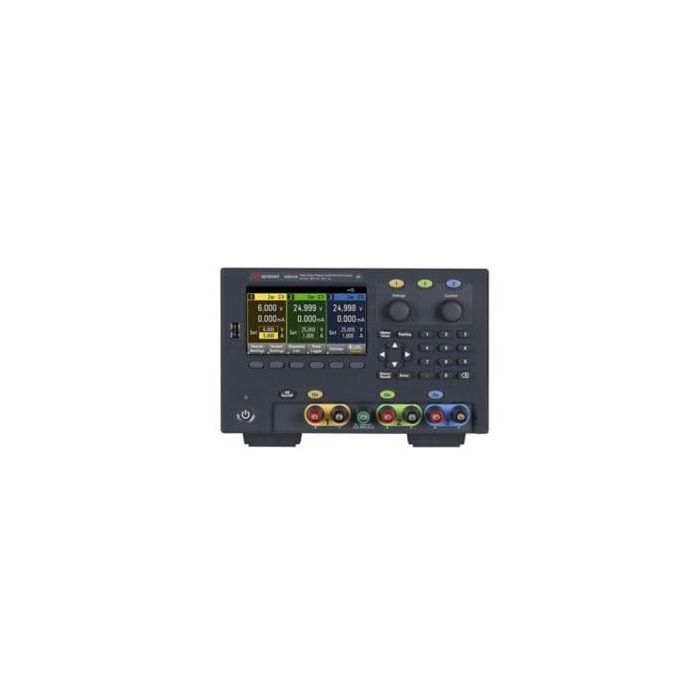

E36312A

The 80-Watt E36312A is a clean reliable bench power supply for general purpose applications. It combines convenient benchtop capabilities with flexible system features in a compact intuitive package. This is one of three models in this product family. For higher power and similar features see the E36313A (160 W) model. For a more economic power supply with a basic feature set see the E36311A (80 W).

Clean, reliable power supply

• Low, normal mode noise specifications assure quality power for precision circuitry applications enabling you to power your design with confidence.
• Accurate voltage/current programming and read back capability provides excellent control to precisely power your device under test.
• Characterizing small power devices with low current range to 1µA resolution.
• Protection for your device under test (DUT) includes over voltage, over current, and over temperature protection.

Convenient benchtop capabilities

• Three independent outputs in one instrument saves maintenance cost and bench space.
• One of the quietest power supplies in its class provides a quiet and undisturbed work environment.

Compact, intuitive package

• 4.3-inch LCD color display to show the voltage and current of all three channels at the same time.
• Color-code d channels to simplify manual set-up.

Increased capability for increased productivity

• Simultaneously log time-stamped data to the large color display and external USB thumb drive for data analysis. USB/LAN with Option GPIB available.
• Generate complex sequences of output changes with rapid, precise timing and synchronized with internal or external signals to simulate on/off modes of your device.
• Automatically set channels 2 and 3 to series or parallel to double the output voltage or current when a little more is needed.
• Account for voltage drop in the power leads to achieve tight regulation and high voltage measurement accuracy with 4-wire remote sensing.
