EAI-2100
EAI-2100
Advantech

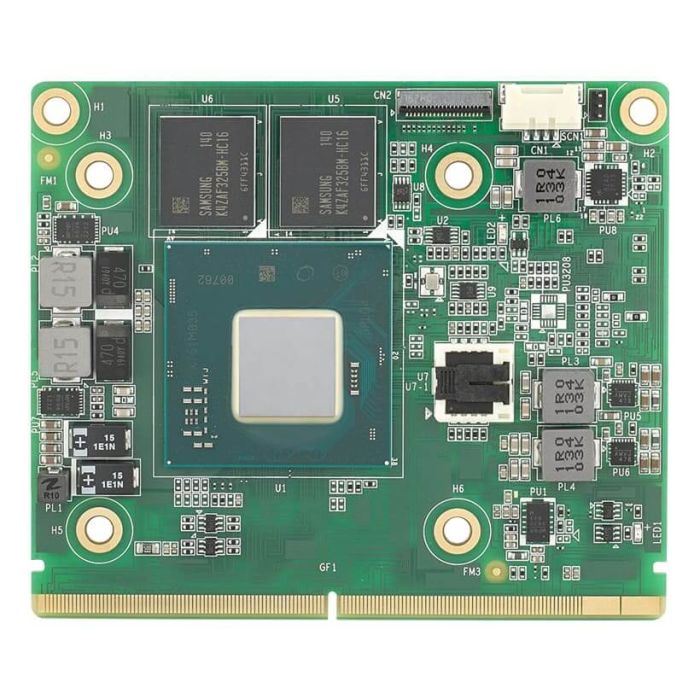

MXM 3.1 Type A Intel Arc A370M Embedded GPU Card with DP 1.4a
Edge AI Acceleration Module
MXM 3.1 Type A Intel Arc A370M Embedded GPU Card with DP 1.4a
Key Features
- Intel Arc A370M with 1550 MHz Base Clock, GDDR6 4GB 64 bit Memory, up to 4.198 TFLOPS
- TGP 40W Low consumption with optional thermal kit, support 0-60°C working temperature
- Reserved DP 1.4a x4 displays up to 8K UHD resolution
- Advantech Edge AI SDK and Intel OpenVINO support
- DirectX12, OpenGL 4.6, OpenCL 3.0, H.264/H.265 (HEVC)/AV1 hardware encode/decode support
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Consumption |
Maximum: 40W |
| Operating Temperature | 0 ~ 60°C |
| Dimensions | 82 W x 70 mm D |
| Interface | MXM 3.1 PCI Express Gen 4 x8 with 3.0 Backwards Compatibility |
| Memory | GDDR6 4GB |
| Processor | Intel® Arc™ A370M GPU |
| Graphics | Reserved 4x DisplayPort1.4a |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
