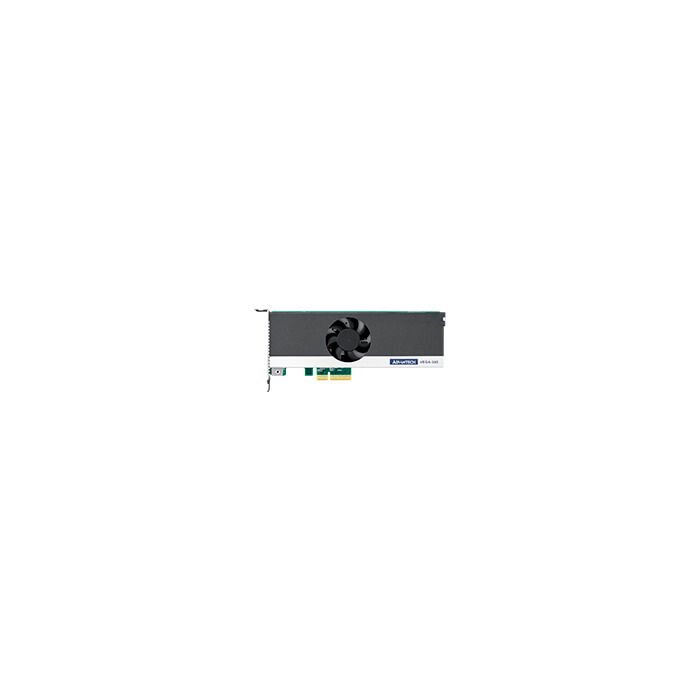

VEGA-340
VEGA-340
Advantech
PCIe x4 with 4x/8x Intel® Movidius™ Myriad™ X VPU Edge AI Acceleration Module
Edge AI Acceleration Module
PCIe x4 with 4x/8x Intel® Movidius™ Myriad™ X VPU Edge AI Acceleration Module
Key Features
- Four/Eight Intel® Movidius™ Myriad™ X VPU onboard
- Hardware acceleration for common deep neural networks
- Scalable for multiple video streams edge inference
- 10 times the performance compared to the previous generation
- Intel® OpenVINO™ toolkit for inference performance optimization
- Edge AI Suite with GUI for quick evaluation
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Operating Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Dimensions | 171.07 x 68.9 mm |
| Interface |
VEGA-340-04A1: PCI Express x4, compliant with PCI Express Specification V2.0 VEGA-340-08A1: PCI Express x4, compliant with PCI Express Specification V2.0 |
| Operating System |
Microsoft Windows: Windows 10 Enterprise 64 bitWindows 10 Enterprise 64 bit |
| Input Voltage Range - Power Supply |
VEGA-340-04A1 Typical: 6.7 W Maximum: 16.8 W VEGA-340-08A1 Typical: 9.6 W Maximum: 28 W |
| Processor |
VEGA-340-04A1: SOC Four Myriad X MA2485 VEGA-340-08A1: SOC Eight Myriad X MA2485 |
| Power source | Default from PCIe gold finger, 6-pin connector for 12 VDC input by cable |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
