EHP-8WW
EHP-8WW
ETS-Lindgren
1 GHz to 40 GHz - EHP Series Extra High Performance Walkway Absorber

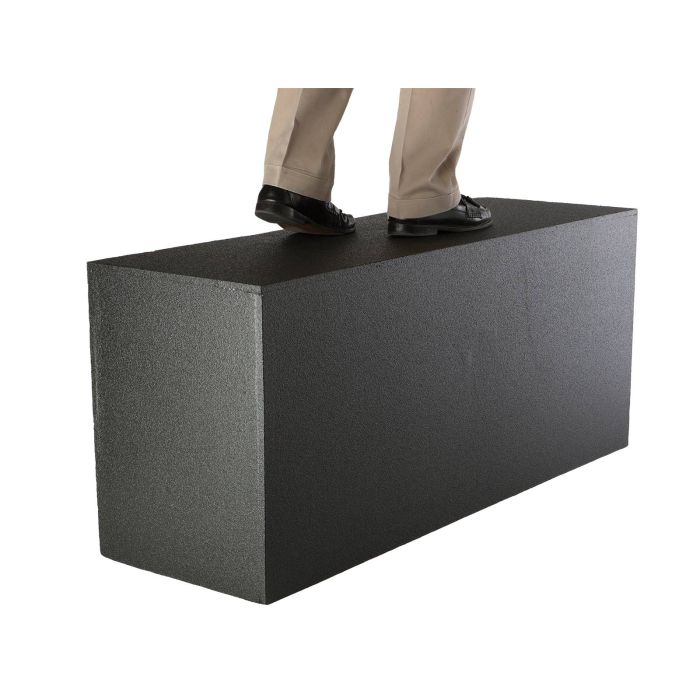

EHP-8WW Extra High Performance Walkway Absorber - 1 GHz to 40 GHz
ETS-Lindgren's Extra High Performance Walkway Absorber is a special absorbent material that is compatible with anechoic chamber reflection requirements, yet provides a walking surface for personnel. Low-density rigid polystyrene foam is used to encapsulate a standard pyramidal or wedge absorber. A thin sheet of semi-rigid polyvinyl chloride foam is adhered to the top to provide a walking surface, which is smooth and impervious to water and dirt.
Key Features:
- Frequency Range: 1 GHz to 40 GHz
- Absorber Height: 21.6 cm (8.5 in)
- Walkway Height: 27.9 cm (11.0 in)
- Supports up to 90.7 kg per 0.3 m (200 lb per ft²)
- Smooth Walking Surface, Impervious to Water and Dirt
- Compatible with Anechoic Chamber Reflection Requirements
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 61 cm x 61 cm x 27.9 cm (24 in x 24 in x 11.0 in) |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 1 GHz |
| Footprint | 24 in x 24 in (61 cm x 61 cm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
