TREK-570
TREK-570
Advantech
Compact In-Vehicle Computing Box for Fleet Management

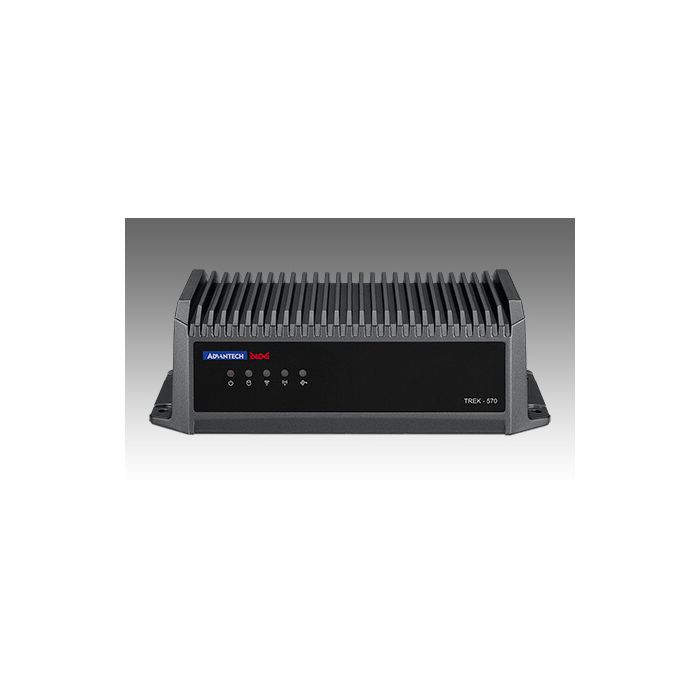

The TREK-570 is a compact, cost-effective in-vehicle computing box powered by an Intel Atom® E3826 SoC. It pairs seamlessly with TREK-303/306 in-vehicle smart displays through a single-cable connection. Designed for fleet management, it offers a wide operating temperature range and MIL-STD-810G certification for resistance to shock, vibration, and durability in harsh environments. An intelligent vehicle power management (VPM 2.0) chip safeguards against transient voltage and enables programmable ignition on/off, delay, and low-battery monitoring, while dual CAN bus ports support diverse protocols (J1939, OBD-II/ISO 15765) for streamlined vehicle diagnostics. Built-in wireless communication supports vehicle tracking and real-time data transmission.
Key Features:
- Supports real-time rear-view monitoring
- Dual independent display/audio output for both driver and passenger for IVI and digital signage applications
- Rugged platform with 5M3 shock and vibration tolerance, -30 ~ 70°C wide temperature without airflow
- Vehicle diagnostic interface with configurable protocols: CAN (J1939, OBD-II/ISO 15765) and J1708 (J1587)
- Built-in GNSS, optional WLAN, Bluetooth, LTE WWAN
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Memory | 1 x 4 GB DDR3L SODIMM 1600 MHz, non-ECC |
| CAN | 2 x CAN bus with raw CAN, J1939, and OBD-II/ISO 15765 support (configurable via firmware) |
| USB |
1 x USB 3.0 Type-A (rear, with cable clip) |
| Serial Ports |
2 x 4-wire RS-232 |
| Mini PCIe |
1 x full-size mini PCIe (PCIe/USB 2.0) for Edge AI (up to Hailo 8R, 13 TOPS) |
| Ethernet | 1 x Giga LAN, with locking RJ-45 connector |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
