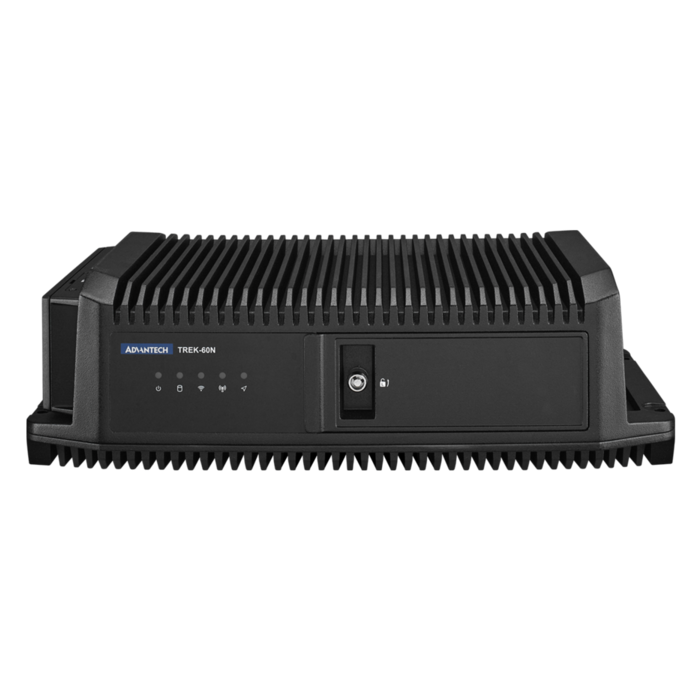

TREK-60N
TREK-60N
Advantech
Dual-System Rugged Edge AI Platform for In-Vehicle & Harsh Environments
Aimed at AI for harsh environments, TREK-60N features a dual system integrating Intel® Core™ i7/Atom™ E3940 quad-core processor for high-performance computing, and NVIDIA® Jetson Orin™ NX AI capabilities up to 4x POE camera input channels for AI graphic computing. The RF extension module with automotive-grade FAKRA connector provides GNSS, WLAN, Bluetooth, and WWAN capabilities for real-time communication, vehicle tracking, and data collection.
Moreover, inheriting the TREK products’ excellent rugged design, it supports a wide operating temperature range, and is compliant with MIL-STD-810G and 5M3 specifications. for vibration/shock resistance, ensuring stable operation in harsh industrial environments.
Key Features:
- Intel® & NVIDIA® dual-system to provide excellent vehicle edge AI computing performance
- 4ch PoE support video streams for AI capacity
- In-vehicle specialized design: 12/24V certified car power (E-Mark, ISO 7637-2), dual CANbus
- Rugged platform with IP65, 5M3 shock and vibration tolerance, -20 ~ 60°C wide temperature w/o airflow
- Modular design supports the latest RF communication technologies
- ONE cable connection with TREK displays
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Memory |
1 x SODIMM, up to 8 GB DDR3L 1866 non-ECC memory |
| CAN | 2 x CAN bus (CANFD compliant, Core i 13th version); compliant with J1939, OBD-II/ISO-15765; supports 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B) identifiers; ISO 11898-2, up to 1 Mbit/s; configurable via SDK |
| USB |
1 x USB 3.0 Type A (front, key-lock protection) |
| Serial Ports |
2 x 4-wire RS-232 (default)/RS-485 |
| OTG USB | 1 x Micro USB (OTG) |
| SIM | 1 x externally accessible mini SIM card socket with cover; 1 x embedded SIM (available upon request) |
| Expansion M.2 |
1 x M.2 2230 (A+E Key) for Wi-Fi 6/7 + Bluetooth V5.3 |
| SD Card | 1 x externally accessible micro SD card reader with key-lock protection (upon request; supports system bootup) |
| Ethernet | 2 x Giga LAN (with optional locking mechanism, or M12 connector) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
