DSH-1250H
DSH-1250H
ETS-Lindgren

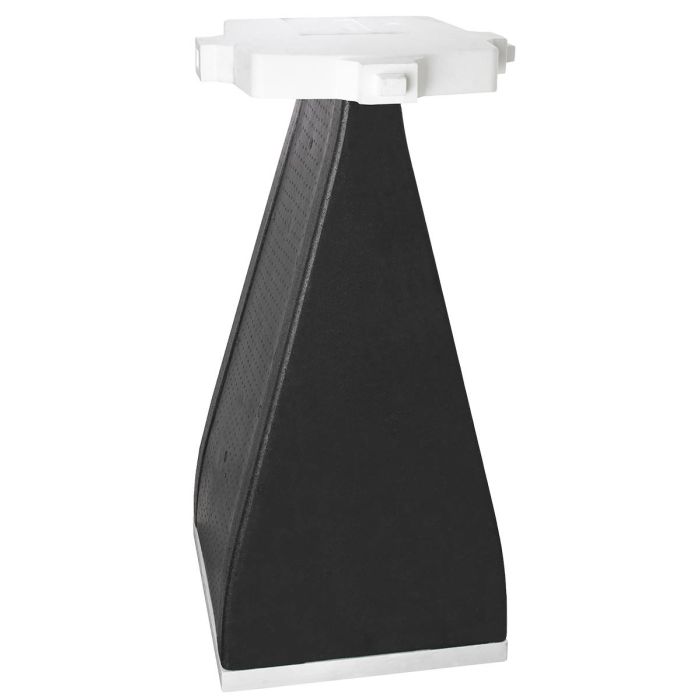

DuraSorb Polystyrene Hybrid Absorber
High-Profile Hybrid Absorber for Large Chambers
DuraSorb™ DSH-1250H Absorber is the latest evolution of ETS‐Lindgren’s hybrid anechoic absorber technology that combines the advantages of the proven FerroSorb™ performance with the physical properties of the PS Series absorbers.
DSH-1250H is ideal for 5 m range and 10 m range chambers. The DSH-1250H provides a smooth transition from free space impedance to the lossy ferrite tile base.
Key Features:
- Frequency Range: 30 MHz to 40 GHz
- For ANSI C63.4 and CISPR
- Durable Construction, Precision Installation Design
- Non-hygroscopic, Fire Resistant
- Includes Ferrite Tile Base
- Suited for Cleanroom Environments (ISO8)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 125.0 cm x 60.0 cm x 60.0 cm (49.21 in x 23.62 in x 23.62 in) |
| Weight | 15 lbs |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 30 MHz |
| Standards |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
