4 GHz to 40 GHz - EHP Series Extra High Performance Walkway Absorber
EHP-3WW Extra High Performance Walkway Absorber - 4 GHz to 40 GHz

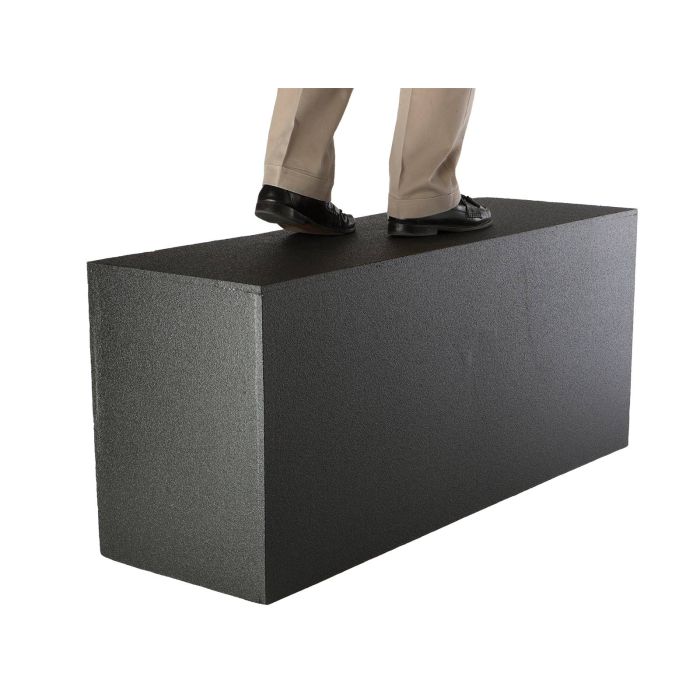

ETS-Lindgren's Extra High Performance Walkway Absorber is a special absorbent material that is compatible with anechoic chamber reflection requirements, yet provides a walking surface for personnel. Low-density rigid polystyrene foam is used to encapsulate a standard pyramidal or wedge absorber. A thin sheet of semi-rigid polyvinyl chloride foam is adhered to the top to provide a walking surface, which is smooth and impervious to water and dirt.
Key Features:
- Frequency Range: 4 GHz to 40 GHz
- Absorber Height: 8.3 cm (3.25 in)
- Walkway Height: 14.0 cm (5.5 in)
- Supports up to 90.7 kg per 0.3 m (200 lb per ft²)
- Smooth Walking Surface, Impervious to Water and Dirt
- Compatible with Anechoic Chamber Reflection Requirements
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 61 cm x 61 cm x 14.0 cm (24 in x 24 in x 5.5 in) |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 4 GHz |
| Footprint | 24 in x 24 in (61 cm x 61 cm) |
