FACT 10 Meter EMC Chamber - 10 m Range Full Compliance Testing

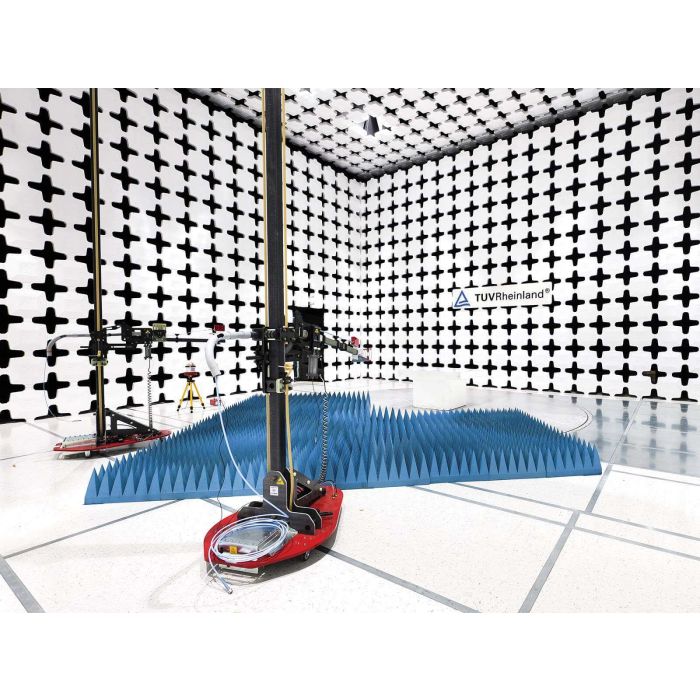

FACT™ 10 Meter EMC Chamber
The FACT 10 provides full compliance semi-anechoic RE and fully anechoic RI testing at 10 m range. Large enough for 6-metre antenna scans above the ground plane and large-diameter turntables for substantial EUTs. Available with 3 m, 4 m, or 6 m quiet zone configurations.
DSH1250H absorber withstands up to 200 V/m continuous and 500 V/m intermittent. Multiple chamber size options are available depending on quiet zone selection.
Key Features:
- 26 MHz to 18 GHz Frequency Range
- Choice of 3 m, 4 m, or 6 m Quiet Zone
- Full Compliance RE: ANSI C63.4 Parts 15/18, CISPR 11/16/22, EN 50147-2, Bellcore GR-1089, SAE J551
- Full Compliance RI: IEC 61000-4-3, ENV 50140, SAE J-1113
- Eligible for FCC Class A & B Facility Filing
- Available as Turnkey Package
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Outer dimensions ( Lx W x H) | Varies by quiet zone; e.g. FACT 10-4.0: 20.50 m x 11.61 m x 7.85 m overall |
| Emissions Frequency Range | 30 MHz to 18 GHz |
| Immunity Frequency Range | 26 MHz to 18 GHz |
| Frequency Range | 26 MHz to 18 GHz |
