FACT 5 Meter EMC Chamber - 5 m Range Full Compliance Testing

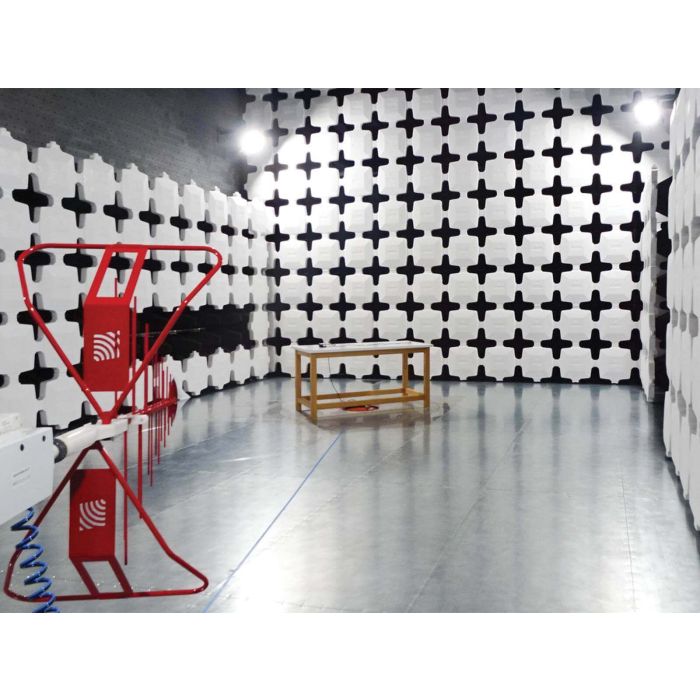

FACT™ 5 Meter EMC Chamber
The FACT 5 provides semi-anechoic RE and fully anechoic RI compliance testing. It supports RE testing at 5-metre distance while preserving 3-metre compliance capability. Results at 5 m correlate better to 10-metre measurements than those at 3 m. Quiet zones up to 3 m diameter are available.
Broadband performance is achieved through hybrid and ferrite tile absorber modelled with proprietary numerical electromagnetic software. Absorber material withstands up to 200 V/m continuous and 500 V/m intermittent field intensity.
Key Features:
- 26 MHz to 40 GHz Frequency Range
- 5 m and 3 m Test Distance Capability
- Full Compliance RE: ANSI C63.4, FCC Parts 15/18, CISPR 11/16/22/32, EN 50147-2, VCCI, SAE J551/J1113
- Full Compliance RI: IEC 61000-4-3, SAE J551/J1113
- NSA Options: Standard ±4.0 dB, Standard Plus ±3.5 dB, Premium ±3.0 dB
- Available as Turnkey Package
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Emissions Frequency Range | 30 MHz to 40 GHz |
| Immunity Frequency Range | 26 MHz to 18 GHz |
| Frequency Range | 26 MHz to 40 GHz |
