SpaceSaver 26H RF-Shielded Semi-Anechoic Chamber - Radiated Immunity and Pre-Compliance Emissions

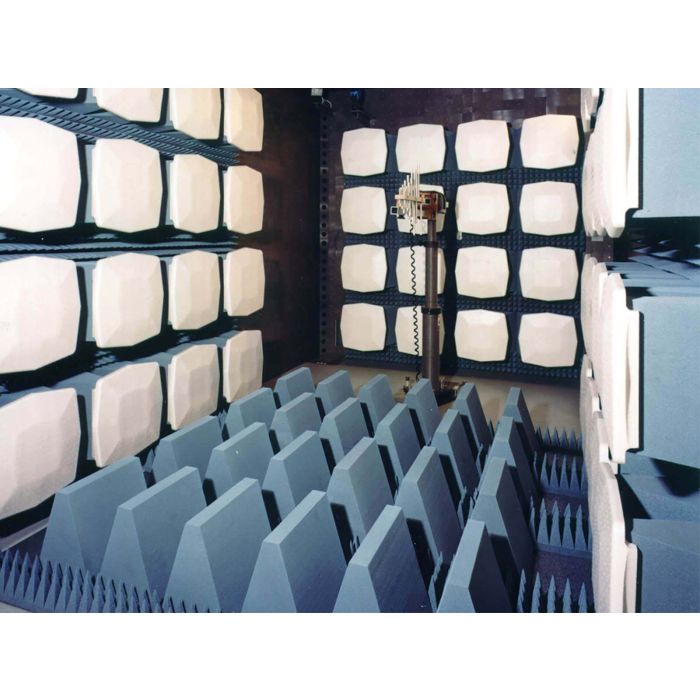

SpaceSaver™ 26H Chamber
The SpaceSaver 26H is a compact RF-shielded semi-anechoic chamber for radiated immunity and pre-compliant emission testing from 26 MHz to 40 GHz. Its anechoic performance meets or exceeds requirements for radiated immunity testing per IEC 61000-4-3, and it supports pre-compliant radiated emissions pre-scans per ANSI C63.4/CISPR 16-1-4 in both semi-anechoic and fully anechoic (fixed height) configurations.
Validation of the RF shielded enclosure is performed at 1 GHz plane wave field, with optional shielding enhancements for increased RF attenuation above 10 GHz. The chamber offers a 1.2 m x 2.0 m quiet zone and 1-2 m antenna scan height.
Key Features:
- 26 MHz to 40 GHz Frequency Range
- Radiated Immunity Compliance: IEC 61000-4-3
- Pre-Compliant RE: ANSI C63.4/CISPR 16-1-4 (Semi-Anechoic and Fully Anechoic Fixed Height)
- Compact Footprint for Space-Limited Facilities
- Turnkey Chamber Solutions Available
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 26 MHz to 40 GHz |
| Features |
|
| Immunity Frequency Range | 26 MHz to 40 GHz |
| Emissions Frequency Range | 30 MHz to 40 GHz |
| Outer dimensions ( Lx W x H) | 7.8 m x 3.8 m x 3.2 m |
