5G CATR Antenna Measurement System

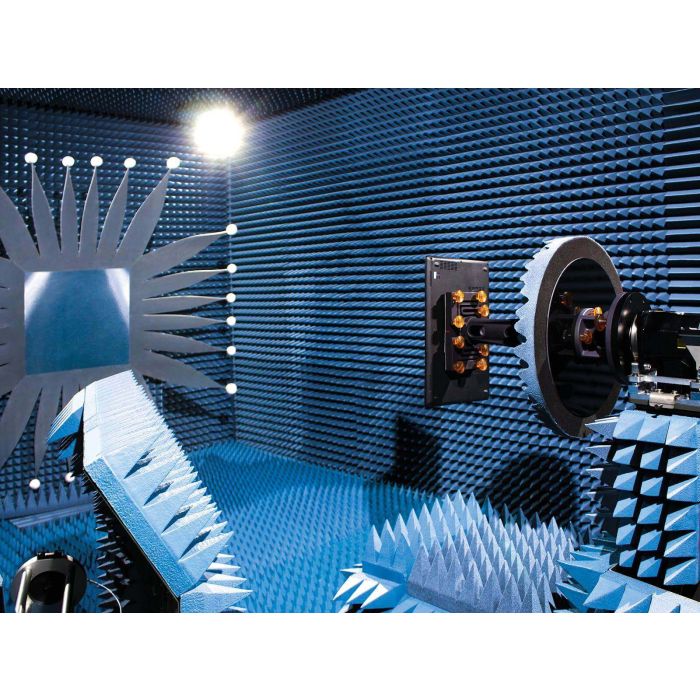

Expanding 5G Possibilities with the AMS-5703 CATR System
AMS-5703 is our most popular compact antenna test range (CATR) thanks to its 60 cm QZ and heavy-duty positioning system. This chamber is a favored do-it-all system that handles everything from smart phones to gNodeB base stations comfortably within the QZ.
Labs wishing to offer antenna and transmitter testing for the coming wave of FR2 O-RAN base stations, repeaters, and distribution systems will appreciate the 50 kg (110 lb) positioning capacity for the DUT this model offers.
AMS-5703 features a walk-in chamber design with plenty of space to mount, cable, and prepare complex DUTs for testing. AMS-5703 meets the 3GPP and CTIA quality-of-quiet-zone test method as well as phase validation requirements for 5GNR bands n257 through n262.
Model AMS-5703 is also approved by Qualcomm for FR2 beam characterization and verification measurements. As opposed to 30 cm quiet zone CATRs, AMS-5703’s larger QZ allows combinations of devices, phantoms, and materials to be characterized for a much better understanding of real world device performance.
Key Features:
- Indirect Far-Field (IFF) system utilizing Compact Range Reflector system
- Maximum Array support up to 60 cm diameter
- Link budget optimization
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 4.6 m x 2.7 m x 2.4 m (15.0 ft x 9.0 ft x 8.0 ft) |
| Frequency Range | 5GNR FR2, 18 GHz to 50 GHz |
| Configuration |
|
| Shielding effectiveness | 80 dB @ 40 GHz |
