ETS-Lindgren

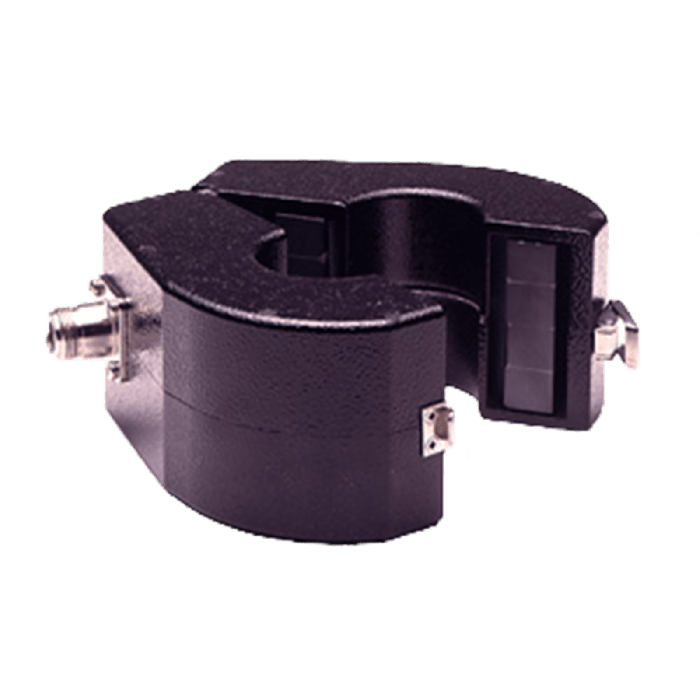

Current Probe 10 kHz - 100 MHz - Broadband EMC Current Probe with 3.18 cm (1.25 in) Window
Broadband EMC Current Probe (10 kHz - 100 MHz)
The ETS-Lindgren Model 91550-1 is a diagnostic tool for cable common mode current sources of radiated emissions and as measurement of cable common mode coupled currents during radiated susceptibility testing. It has an extremely broad frequency range covering 10 kHz to 100 MHz.
The 91550-1 has a 3.18 cm (1.25 in) window, making it suitable for measurements on most power cables (AWG 4/0 cable, good for several hundred Amps, is 12.7 mm diameter, exclusive of insulation). Probe saturation current is compatible with the current carrying capacity of wires placed in its window.
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Weight | 0.6 kg (1.32 lb) |
| Applications | Conducted emissions, cable common mode current, radiated susceptibility diagnostics |
| Included Accessories | BNC cable, carrying case |
| Rise Time | < 3.5 ns |
| Cable Length | 1 m |
| Connector Type | BNC Female |
| Operating Temperature | -10°C to +50°C |
| Standards | MIL-STD-461, MIL-STD-462 CE01, RS01, CISPR 16-1-2 |
