ETS-Lindgren
Current Probe 10 kHz - 200 MHz - Wideband EMC Current Probe
Current Probe (10 kHz - 200 MHz)

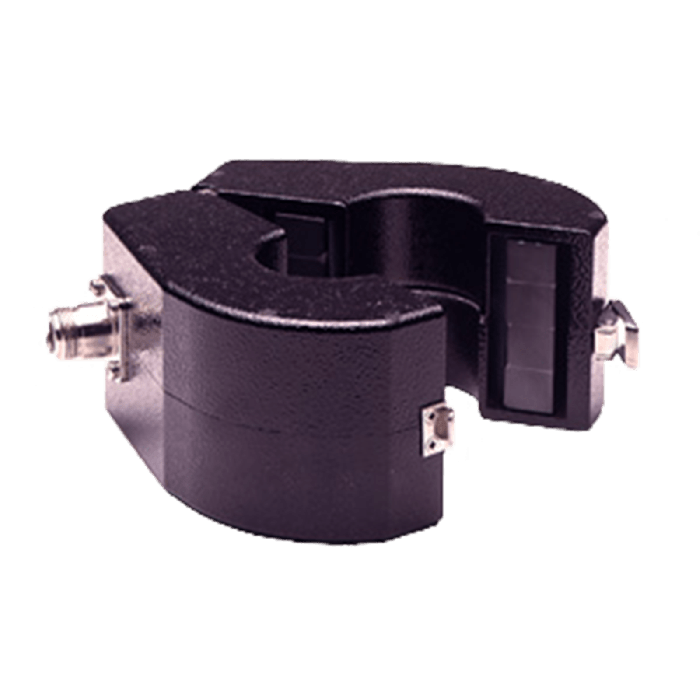

The ETS-Lindgren Model 93686-8 has a large 6.65 cm (2.625 in) window diameter, making it very versatile. It is designed to perform current conducted measurement in the frequency range 10 kHz to 200 MHz, including applications requiring the measurement of low duty cycle, high level pulsed currents.
The larger diameter is extremely useful when making common mode measurements as per MIL-STD-1399, Section 390, or for diagnostic purposes. This common mode test requires both EUT feeder and return to be routed through the probe window. The 6.65 cm window makes it suitable for measurements on almost any size power or signal cable.
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Weight | 2.27 kg (5.00 lb) |
| Applications | Conducted emissions, common mode measurement, pulsed current measurement, MIL-STD-1399 |
| Included Accessories | BNC cable |
| Rise Time | < 5 ns |
| Cable Length | 1 m |
| Connector Type | BNC Female |
| Operating Temperature | -10°C to +50°C |
| Standards | MIL-STD-461, MIL-STD-1399 Section 390, CISPR 16-1-2 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
