ETS-Lindgren
Current Probe 1 MHz - 1000 MHz - GHz Range EMC Current Probe
Current Probe (1 MHz - 1000 MHz)

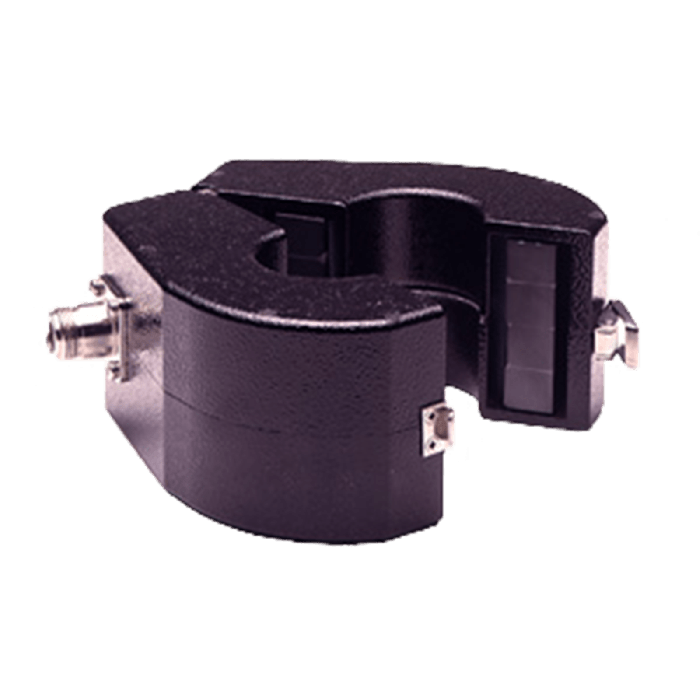

The ETS-Lindgren Model 94111-1 is capable of making measurements up to 1 GHz. It is an RF current probe for cable common mode current sources of radiated emissions and as measurement of cable common mode coupled currents during radiated susceptibility testing.
The 3.18 cm (1.25 in) window makes the 94111-1 suitable for measurements on most power cables (AWG 4/0 cable, good for several hundred amps, is 12.7 mm diameter, exclusive of insulation). Probe saturation current is compatible with the current carrying capacity of wires placed in its window.
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Weight | 0.43 kg (0.95 lb) |
| Applications | Cable common mode current, radiated emissions diagnostics, radiated susceptibility testing |
| Included Accessories | BNC cable |
| Rise Time | < 1 ns |
| Cable Length | 1 m |
| Connector Type | BNC Female |
| Operating Temperature | -10°C to +50°C |
| Standards | MIL-STD-461, CISPR 16-1-2, EN 55032, RTCA/DO-160 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
