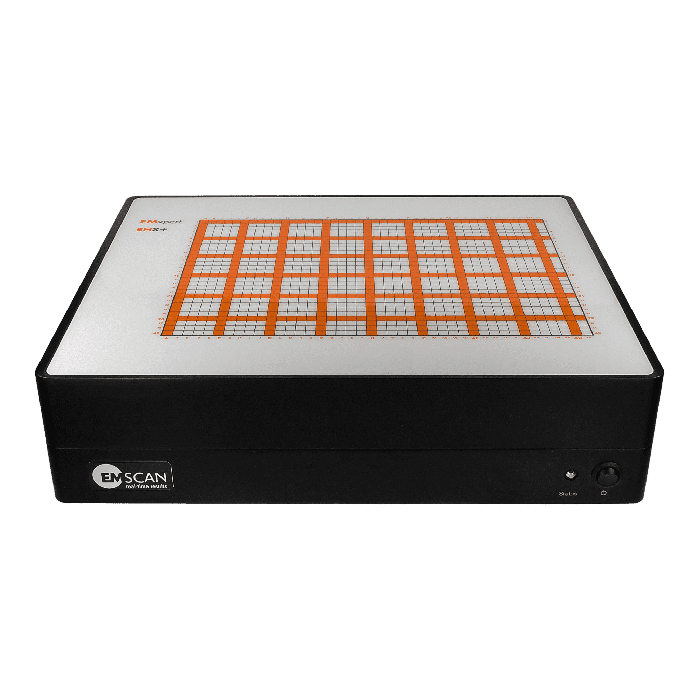

EMxpert EHX
EMxpert EHX
Y.I.C. Technologies
Real-time EMC and EMI diagnostic tool
Test ultra-high speed (> 2 GHz) PCBs in real-time on your lab bench
(Now Obsolete – See EMScanner)
EMxpe rt EHX,EHX+ & ERX+ allow board designers to pre-test and resolve EMC (electromagnetic compatibility) and EMI (electromagnetic interference) design problems in real-time, thus avoiding unexpected EMC compliance test results in anechoic chambers. You get insights about why designs fail, something no anechoic chamber can give you. You don’t need to wait for an anechoic chamber time for design iterations or to re-design and test by trial and error. You can now rapidly diagnose even intermittent problems that may otherwise go undetected with handheld or automated single probes.
NFC (near-field communication) antenna testing can easily be done on EMxpert in seconds. NFC antenna designers and manufacturers can easily verify that their antenna is operating as expected and validate their antenna’s emission level versus calculated results. EMxpert provides a fast and reliable NFC antenna testing to validate field strength of an NFC antenna at a given distance.
Key Features:
- Far-field prediction for regulatory EMC compliance
- Find, characterize and effectively address unintended emissions and RF current loops
- Track hard-to-diagnose intermittent events
- Subtract ambient signals
- Compare design versions
- Frequency coverage 150 kHz – 8GHz (with selected options)
- Sensitivity -135 dBm to 35 dBm (dependant upon spectrum analyser performance)
- 1,218 (42 x 29) H field probes
- Probe spacing 7.5mm giving resolution of 3.75mm
- Easy to use and cost effective
- Reduces test duration by 100 times
- Design cycle time reduction of 50%
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | L 39.2 cm x W 24.4 cm x H 1.7 cm (L 15.43” x W 9.61” x H 0.67”) |
| Weight | 2.80 Kg / 6.17 lb (including cables and the adaptor) |
| Frequency Range |
150 kHz to 1 GHz: 150 kHz to 1 GHz (3-yr warranty Part #: 3000-1700), 150 kHz to 8 GHz enabled with software keys |
| Capability |
Spectral scan, spatial scan, peak-hold, continuous scanning, spectral and spatial comparison, scripting, limit lines, report generation, notes |
| Spatial Scan Time |
Continuous real-time or sub-second single scan for entire scan area. Dependent on spectrum analyzer performance |
| Spectral Scan Time |
45 seconds for L 10 cm x W 10 cm (L 4” x W 4”) PCB with a 100 MHz span and 100 kHz RBW. Scanning area, span and RBW are user selectable within spectrum analyzer specifications |
| Supported Operating System | Windows 10®, Windows 8®, Windows 7®, Windows Vista® and Windows XP® |
| Supported CAD Overlays | Standard Gerber© RS274x format and HPGL format |
| Antenna Array | 1,218 (42 x 29) H-field probes |
| Spatial Resolution | Probe spacing of 7.5 mm with an ‘effective’ resolution of 3.75 mm |
| Scan Area | L 31.6 cm x W 21.8 cm (L 12.44” x W 8.58”) |
| Probe To Probe Uniformity | Calibrated before shipment. Firmware correction factors adjust for frequency dependant probe responses with +/- 3 dB accuracy |
| Maximum Radiated Power Load | 10 W / 40 dBm |
| Maximum DUT Voltage | Glass Cover: 4kV DC; 2.6kV AC | Metal Case: 260V DC; 200V AC (measured as dielectric withstanding voltage - DWV) |
| Operating Temperature | From -20 ⁰C to +45 ⁰C (continuous spectral and spatial scans at 50 MHz) |
| In Situ Scanning | 6U Size C scanner fits into VXI and VME chassis |
| Scanner Connections | Spectrum analyzer: RF SMA to type N coaxial cable | Adaptor: Proprietary DB25 |
| Supported Analysers |
List at https://www.emscan.com/products/emc-emi-testing/ehx/ If your analyzer is not listed, please contact EMSCAN for custom driver PC can connect to the spectrum analyzer via USB or Ethernet (cross-over cable and static IP addresses for PC and spectrum analyzer) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
