Y.I.C. Technologies EMScanner | APC Technology Group

EMS08

EMS08

Y.I.C. Technologies

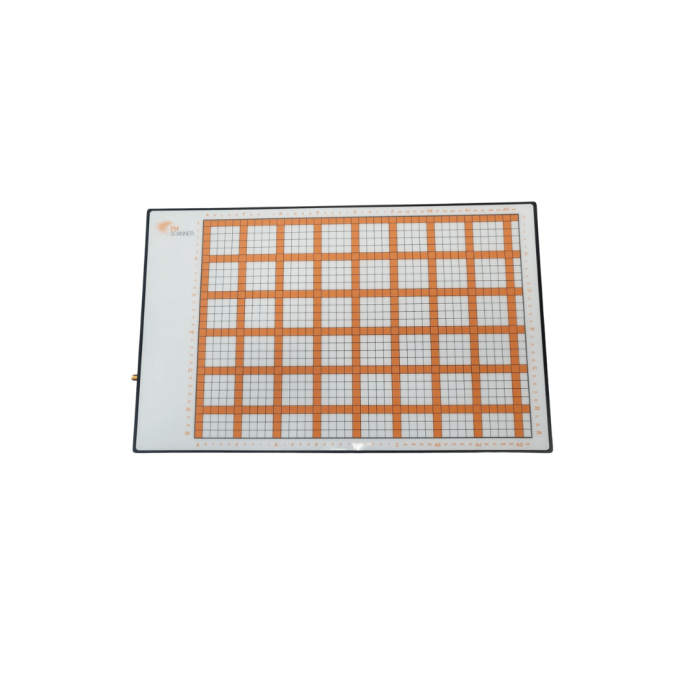

EMScanner - 150 KHz - 8 GHz High Speed EMC/EMI Scanner

High-Frequency EMC Desktop Scanner

EMScanner is a cutting-edge, self-contained near-field scanning solution, engineered to seamlessly integrate with a Spectrum Analyser and a laptop or desktop PC running the powerful Y.I.C. Technologies EMViewer Software.

The EMScanner is designed to deliver highly accurate and repeatable results, enabling engineers to quickly and effectively identify the root causes of design failures.

With the EMScanner, you can streamline the troubleshooting process, reduce development time, and enhance the reliability of your designs, making it an essential tool for engineers working in high-frequency electronics, RF circuit design, and PCB diagnostics.

Key Features

  • Frequency range: 150 kHz – 8 GHz
  • Scanning area: L 31.6 cm x W 21.8 cm (L 12.44” x W 8.58”)
  • Physical Resolution: 7.5mm
  • 1YR EMViewer Subscription including upgrades, support & hardware warranty

Ideal PCB projects for EMScanner are boards designed for high speed, high power, and/or high density/complexity. Any PCB that places a premium on board real estate also qualifies as an excellent candidate. The compact, flat scanner provides PCB design teams with an easy-to-use, cost-effective, and proven tabletop solution. Emission, immunity, filtering, EMI shielding, broadband noise and Common Mode testing are some of the applications that the EMScanner system addresses in mere seconds.

With EMScanner, design teams can personally test their designs without having to rely on another department, test engineer, or time-consuming off-site testing. After diagnosing even an intermittent problem, the engineer can implement a design change and retest, and the results provide concrete verification of the effectiveness (or not) of the design change.

EMScanner diagnostic capabilities allow design teams to reduce testing time by more than two orders of magnitude. Users have also documented fifty per cent reductions in design cycle times.

Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Capability

Spectral scan, spatial scan, peak-hold, continuous scanning, spectral and spatial comparison, scripting, limit lines, and report generation.

Spatial Scan Time

Continuous real-time or sub-second single scan for the entire scan area. Dependent on the spectrum analyser performance.

Spectral Scan Time

45 seconds for L 10 cm x W 10 cm (L 4” x W 4”) PCB with a 100 MHz span and 100 kHz RBW. Scanning area, span, and RBW are user-selectable within the spectrum analyser specifications.

EMViewer Software

We recommend using the EMViewer software for the best results. A Perpetual Licence with a subscription is available for the latest updates, upgrades, support and hardware warranty.

Supported Operating System Windows 10®
Supported CAD Overlays Standard Gerber© RS274x format and HPGL format
Broadband Frequency Coverage Base configuration = 150KHz to 8GHz
Antenna Array 1,218 (42 x 29) H-field Probes Measurement sensitivity: Dependent on Spectrum Analyser performance
Spatial Resolution Probe spacing of 7.5 mm with an ‘effective’ resolution of 3.75 mm
Scan Area L 31.6 cm x W 21.8 cm (L 12.44” x W 8.58”)
Frequency Accuracy Of Peaks Peak marking accuracy of the Spectrum Analyzer
Probe To Probe Uniformity Calibrated before shipment. Firmware correction factors adjust for frequency, dependant probe responses with +/- 3 dB accuracy.
Measurement Plane Isolation > 20 dB
Maximum Radiated Power Load 10 W / 40 dBm
Enclosure Anodised non-conductive metal.
Maximum DUT Voltage

Glass Cover: 4kV DC; 2.6kV AC
Metal Case: 260V DC; 200V AC (measured as dielectric withstanding voltage – DWV)

Operating Temperature From 15⁰ C to 40⁰ C (continuous spectral and spatial scans at 50 MHz)
In Situ Scanning 6U Size C scanner fits into VXI and VME chassis
Scanner Connections

Spectrum analyser: RF SMA to type N coaxial cable
Adapter: Proprietary DB25

Supported Analysers All SCPI based Spectrum Analysers will be added via EMViewer software.
Dimensions Of Scanner L 39.2 cm x W 24.4 cm x H 1.7 cm (L 15.43” x W 9.61” x H 0.67”)
Weight 2.80 Kg / 6.17 lb (including cables and the adapter)
Fuse Rating 8A
More Information
Attribute Value
Data Sheet Click here to view

Related Products

  1. DBT-EMP

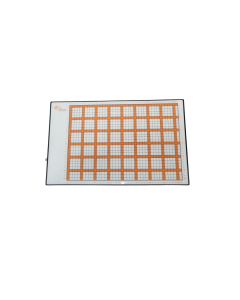

  2. EMS08R
