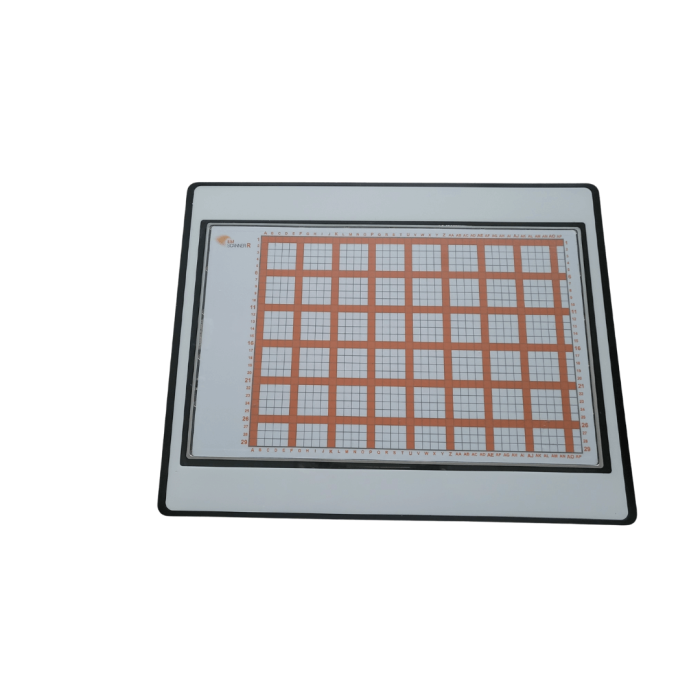

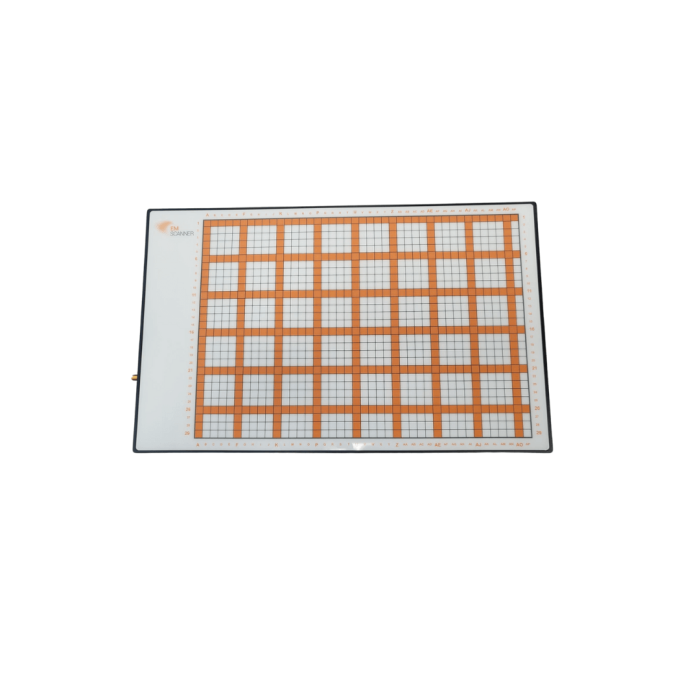

EMScannerR - 150 KHz - 8GHz High Speed, High Resolution EMC/EMI Scanner

High-Resolution EMC Scanner

The World’s Fastest EMC/EMI Diagnostic System has been reinvented to empower high-density board designers with unparalleled precision in visualising and diagnosing potential EMC and EMI issues, both during pre- and post-EMC compliance testing.

EMScannerR is engineered to assist PCB and design engineers in identifying and addressing EMC/EMI challenges across a broad frequency spectrum, ranging from 150 kHz to 8 GHz. Featuring 8 levels of resolution. of which the lowest is 0.06mm. EMScannerR delivers an extraordinary level of detail, enabling quick identification of even the most subtle electromagnetic interference and compliance risks.

With its exceptional speed and resolution, EMScannerR allows engineers to pinpoint design flaws in real-time, making it the ideal solution for designers working on complex, high-density boards. By providing actionable insights early in the design cycle, it reduces costly compliance failures, minimises development time, and ensures higher-quality, more reliable end products.

Key Features

  • Frequency range: 150 kHz – 8 GHz
  • Scanning area: L 31.6 cm x W 21.8 cm (L 12.44” x W 8.58”)
  • High Resolution: 0.06mm
  • 1YR EMViewer Subscription including upgrades, support & hardware warranty
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Capability

Spectral scan, spatial scan, peak-hold, continuous scanning, spectral and spatial comparison, scripting, limit lines, report generation, and notes.

Spatial Scan Time

Continuous real-time for the entire scan area (1,218 probes activated) when Level 1 is selected: 5 sec.

Selected area 2.25 cm x 2.25 cm, 9 probes activated.

Level 1: <0.5 sec
Level 2: 4 sec
Level 3: 9 sec
Level 4: 21 sec
Level 5: 55 sec
Level 6: 2 min 35 sec
Level 7: 7 min 23 sec
Level 8: 24 min 00 sec

Spectral Scan Time

11 seconds for L 10 cm x W 10 cm (L 4” x W 4”, 178 probes activated) from 10 MHz span to 110 MHz and 122 kHz RBW. Scanning area, span, and RBW are user-selectable within the spectrum analyser specifications

Supported Operating System Windows 10®
Supported CAD Overlays

Picture in JPEG format. Standard Gerber© RS274x format and HPGL format.

Broadband Frequency Coverage Base configuration = 150KHz to 8GHz
Antenna Array 1,218 (42 x 29) H-field Probes
Spatial Resolution

Level 1: 7.50 mm
Level 2: 3.75 mm
Level 3: 1.88 mm
Level 4: 0.94 mm
Level 5: 0.47 mm
Level 6: 0.24 mm
Level 7: 0.12 mm
Level 8: 0.06 mm

Scan Area L 31.6 cm x W 21.8 cm (L 12.44” x W 8.58”)
Frequency Accuracy Of Peaks Peak marking accuracy of the Spectrum Analyzer
Probe To Probe Uniformity Calibrated before shipment. Firmware correction factors adjust for frequency, dependant probe responses with +/- 3 dB accuracy.
Measurement Plane Isolation > 20 dB
Maximum Radiated Power Load 10 W / 40 dBm
Enclosure Anodised non-conductive metal.
Maximum DUT Voltage

Glass Cover: 4kV DC; 2.6kV AC
Metal Case: 260V DC; 200V AC (measured as dielectric withstanding voltage – DWV)

Operating Temperature From 15⁰ C to 40⁰ C (continuous spectral and spatial scans at 50 MHz)
Scanner Connections

Spectrum analyser: RF SMA to type N coaxial cable
Adapter: Proprietary DB25

Supported Analysers All SCPI based Spectrum Analysers will be added via EMViewer software.
Dimensions Of Scanner L 34.5 cm x W 43.5 cm x H 11 cm (L 13.58” x W 17.13” x H 4.33”)
Weight 12.70 Kg / 28 lb (including cables and the adapter)
