ETS-Lindgren
5600 Series Tabletop RF Test Enclosure - Medium (18 x 24 x 12 in)

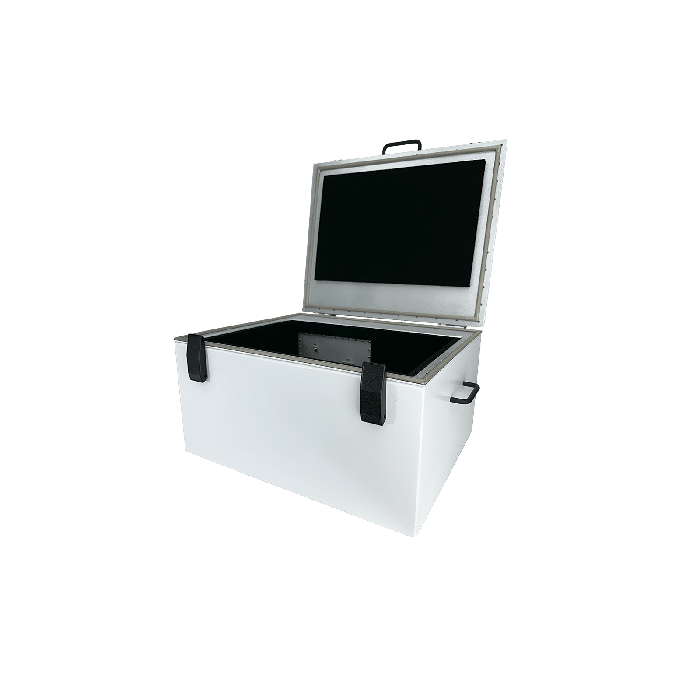

Model 5602 Tabletop RF Test Enclosure
The Model 5602 is a mid-size tabletop enclosure in the ETS-Lindgren 5600 series, offering a larger test volume for wireless device testing from 300 MHz to 18 GHz. Its welded aluminium construction and dual-layer door with precision braid-over-foam RF seal provide 80 dB+ of RF isolation, supporting development, production, and quality assurance applications across Wi-Fi, Bluetooth, Zigbee, RFID, 5G, and IoT technologies.
The interior features ETS-Lindgren microwave absorber lining to eliminate reflections, and field-interchangeable I/O connector panels allow reconfiguration as testing needs change. Available panel options include SMA, DB9, USB 2.0, Ethernet (PoE), DC power, and AC power interfaces.
Key Features:
- 80 dB+ RF Isolation from 300 MHz to 18 GHz
- Mid-Size Tabletop Format: 45.72 x 60.96 x 30.48 cm (18 x 24 x 12 in)
- Microwave Absorber Lined Interior
- Dual-Layer Door with Braid-Over-Foam RF Seal Rated to 50,000+ Cycles
- Interchangeable I/O Connector Panels (5 Options Available)
- Welded Aluminium Construction with Conversion Coated Metal
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 300 MHz to 18 GHz |
| Configuration | Tabletop |
| Shielding effectiveness | 80 dB @ 300 MHz to 3 GHz; 80 dB @ 3 GHz to 6 GHz; 70 dB @ 6 GHz to 18 GHz |
| Outer dimensions ( Lx W x H) | 45.72 cm x 60.96 cm x 30.48 cm (18 in x 24 in x 12 in) |
