ERZ-BPF-0110-1000-2
ERZ-BPF-0110-1000-2
Erzia
Band Pass Filter

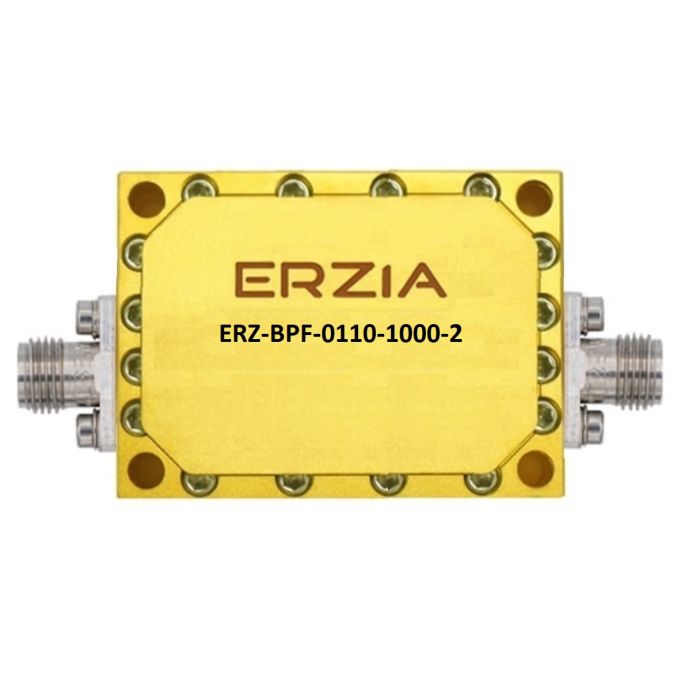

The ERZ-BPF-0110-1000-2 is a suspended substrate combined with lumped elements band pass filter integrated in a compact, rugged and connectorised module allowing easy integration in a wide range of final applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
Industrial / Laboratory
Satcom / Telecom Space / Aerospace / Military |
| Technology | Suspended Substrate |
| Frequency Start (GHz) | 1.1 |
| Frequency Stop (GHz) | 10.0000 |
| Insertion Loss (dB) | 1.0000 |
| Return Loss (dB) | 13.0000 |
| Storage Temperature | -55°C to 125°C |
| Maximum RF Input Power (dBm) | 40.0000 |
| Operating Temperature | -45°C to 85°C |
| Connectors | SMA Female |
| Product Type | Suspended Substrate Filter |
| Dimensions | 55 x 40 x 10 mm |
