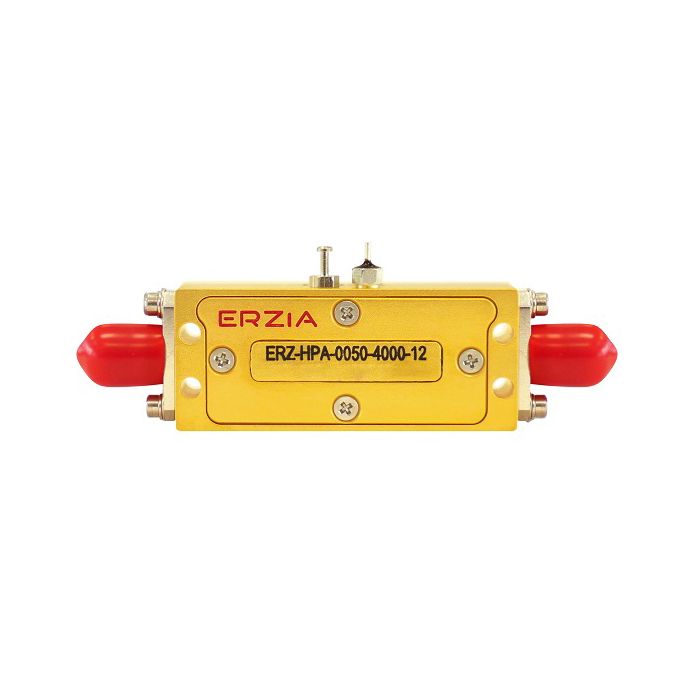

ERZ-HPA-0050-4000-12
ERZ-HPA-0050-4000-12
Erzia
Wideband High Power Amplifier
The ERZ-HPA-0050-4000-12 is a high power amplifier providing an output power of 15 dBm and an equalized gain from 24 dB to 33 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 0.5 |
| Frequency Stop (GHz) | 40.0000 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 209 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 15 |
| Gain (dB) | 28 |
| Operating Temperature | -45°C to 85°C |
| Connectors |
IN: V type (Male)
OUT: K type (Female) |
| Product Type | High Power Amplifier |
| Dimensions | 40 x 16.8 x 9.6 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
