Erzia

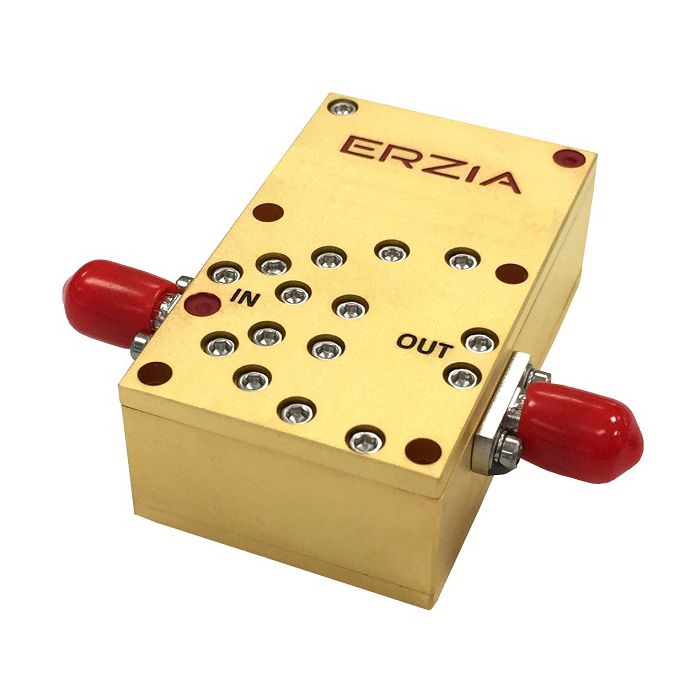

Ka Band High Power Amplifier
The ERZ-HPA-2900-3100-37 is a Ka Band amplifier providing up to 37 dBm and a gain over 18 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 29.0000 |
| Frequency Stop (GHz) | 31.0000 |
| Power Supply (V) | 15± 3V |
| Current (mA) | 3.33 |
| Applications |
|
| Storage Temperature | -45°C to 85°C |
| Band | Ka Band |
| Output Power (dBm) | 37 |
| Gain (dB) | 18 |
| Operating Temperature | -35°C to 70°C |
| Connectors | 2.92 mm Female |
| Product Type | High Power Amplifier |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
