ERZ-HPA-0850-0980-55
ERZ-HPA-0850-0980-55
Erzia

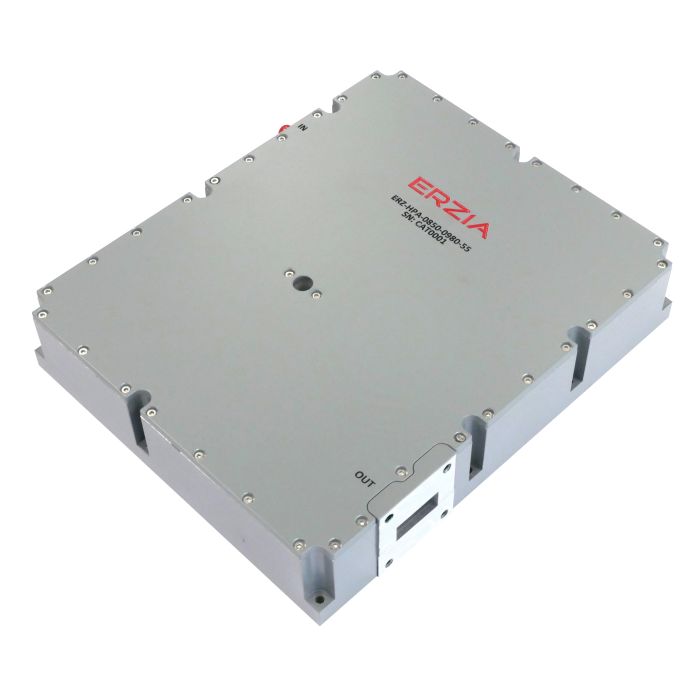

X Band High Power Amplifier
The ERZ-HPA-0850-0980-55 is a pulsed high power amplifier based on GaN technology focused for Radar applications in X band. It provides 300W in a compact size and modularity.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 8.5 |
| Frequency Stop (GHz) | 9.8 |
| Power Supply (V) | 28± 6V |
| Current (mA) | 7143 |
| Applications | Radar X-Band |
| Storage Temperature | -55°C to 125°C |
| Band | X Band |
| Output Power (dBm) | 55 |
| Gain (dB) | 60 |
| Operating Temperature | -40°C to 70°C |
| Connectors |
IN: SMA Female
OUT: WR90 |
| Product Type | High Power Amplifier |
| Dimensions | 178 x 215 x 42.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
