ERZ-HPA-0200-0400-40
ERZ-HPA-0200-0400-40
Erzia

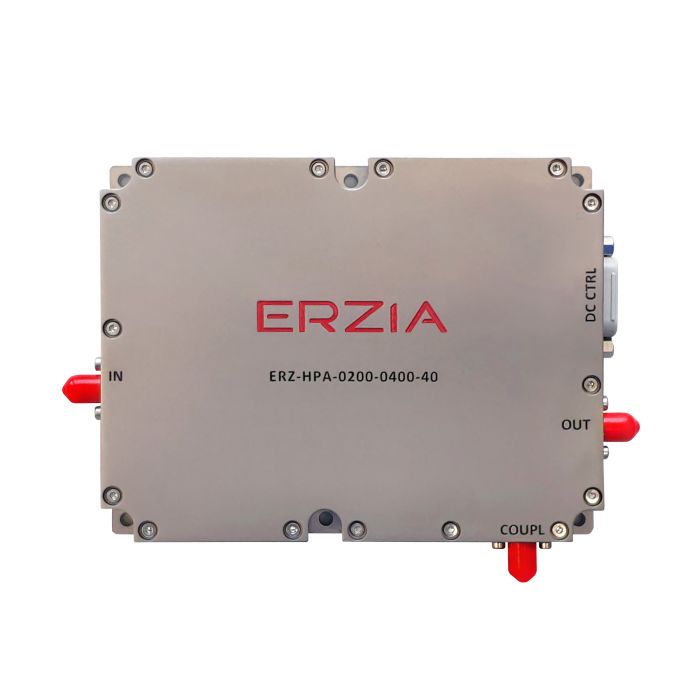

S Band High Power Amplifier
The ERZ-HPA-0200-0400-40 is a high-power amplifier providing an output power of 41 dBm and a gain of 32 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 2.6 |
| Frequency Stop (GHz) | 3.8 |
| Power Supply (V) | 28± 0.5V |
| Current (mA) | 1.43A |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | S Band |
| Output Power (dBm) | 41 |
| Gain (dB) | 32 |
| Operating Temperature | -45°C to 85°C |
| Connectors | SMA Female |
| Product Type | High Power Amplifier |
| Dimensions | 125 x 95 x 22 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
