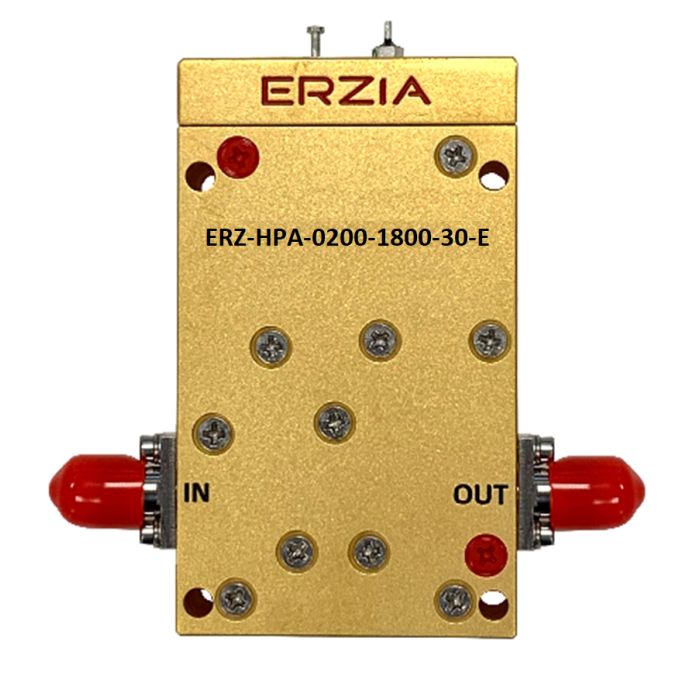

ERZ-HPA-0200-1800-30-E
ERZ-HPA-0200-1800-30-E
Erzia
Wideband High Power Amplifier
The ERZ-HPA-0200-1800-30-E is a Wideband power amplifier providing an outputpower of 30 dBm and a gain of 45 dB.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 2.0000 |
| Frequency Stop (GHz) | 18.0000 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 1250 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 31 |
| Gain (dB) | 45 |
| Operating Temperature | -40°C to 85°C |
| Connectors | SMA Female |
| Product Type | High Power Amplifier |
| Dimensions | 36 x 61 x 14.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
