Erzia

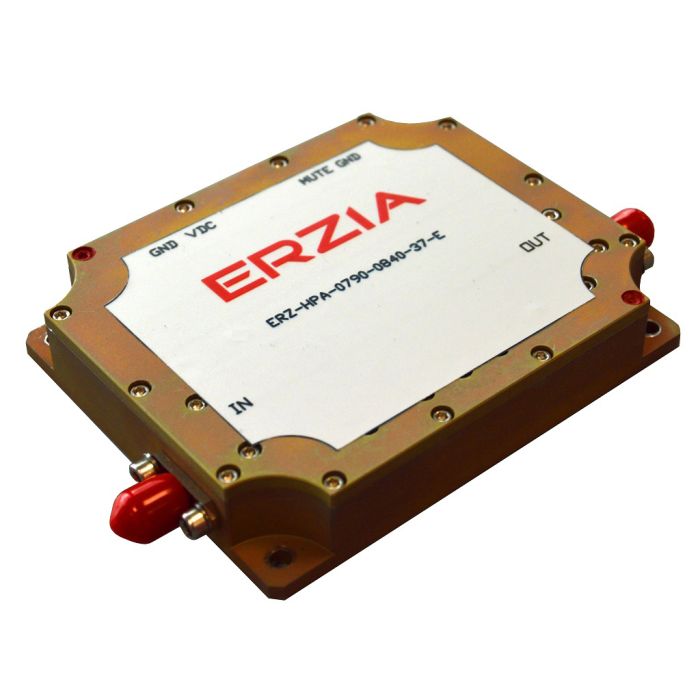

X Band High Power Amplifier
The ERZ-HPA-0790-0840-37-E is a high power amplifier providing an output power of 37 dBm and a gain of 36 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 7.9 |
| Frequency Stop (GHz) | 8.4 |
| Power Supply (V) | 24± 6V |
| Current (mA) | 1125 |
| Applications |
|
| Storage Temperature | -50°C to 100°C |
| Band | X Band |
| Output Power (dBm) | 37 |
| Gain (dB) | 36 |
| Operating Temperature | -30°C to 80°C |
| Connectors | SMA Female |
| Product Type | High Power Amplifier |
| Dimensions | 83.4 x 68.4 x 15 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
