ERZ-HPA-1200-1800-27
ERZ-HPA-1200-1800-27
Erzia
Ku Band High Power Amplifier

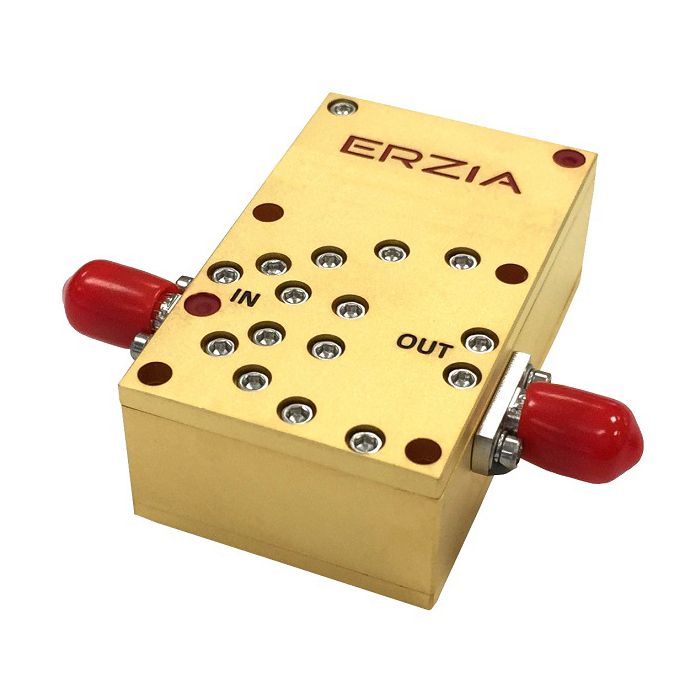

The ERZ-HPA-1200-1800-27 is a high power amplifier providing an output power of 27 dBm and a gain of 14 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 12 |
| Frequency Stop (GHz) | 18 |
| Power Supply (V) | 15± 1V |
| Current (mA) | 366 |
| Storage Temperature | -55°C to 125°C |
| Band | Ku Band |
| Output Power (dBm) | 27 |
| Gain (dB) | 14 |
| Operating Temperature | -45°C to 85°C |
| Connectors | SMA Female |
| Applications |
|
| Dimensions | 30 x 50 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
