ERZ-HPA-0790-0850-40
ERZ-HPA-0790-0850-40
Erzia

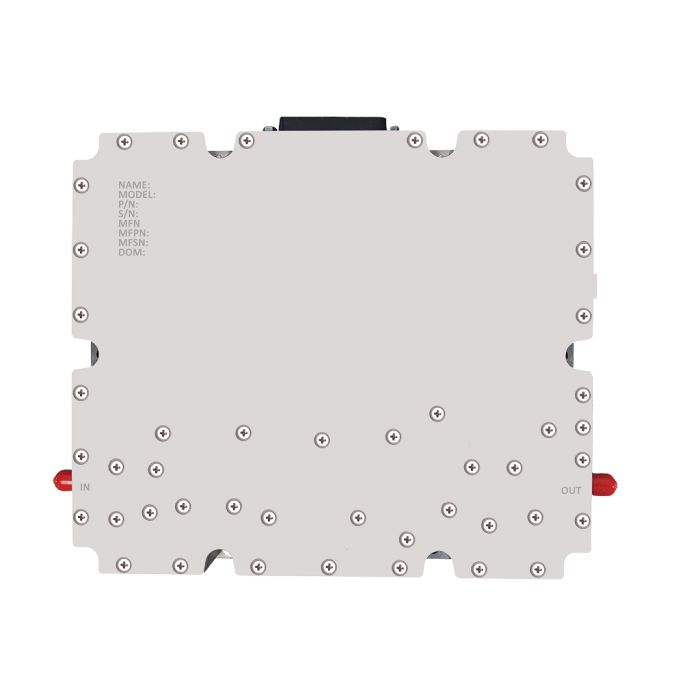

X Band High Power Amplifier
The ERZ-HPA-0790-0850-40 is the commercial version of a space qualified module. This high power amplifier provides an output power of 10W and a gain of 50 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 7.9 |
| Frequency Stop (GHz) | 8.5 |
| Power Supply (V) | 28± 3V |
| Current (mA) | 1744 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | X Band |
| Output Power (dBm) | 40 |
| Gain (dB) | 50 |
| Operating Temperature | -40°C to 75°C |
| Connectors | SMA Female |
| Product Type | High Power Amplifier |
| Dimensions | 186 x 159 x 32 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
