ERZ-HPA-0490-0525-43
ERZ-HPA-0490-0525-43
Erzia
C Band High Power Amplifier

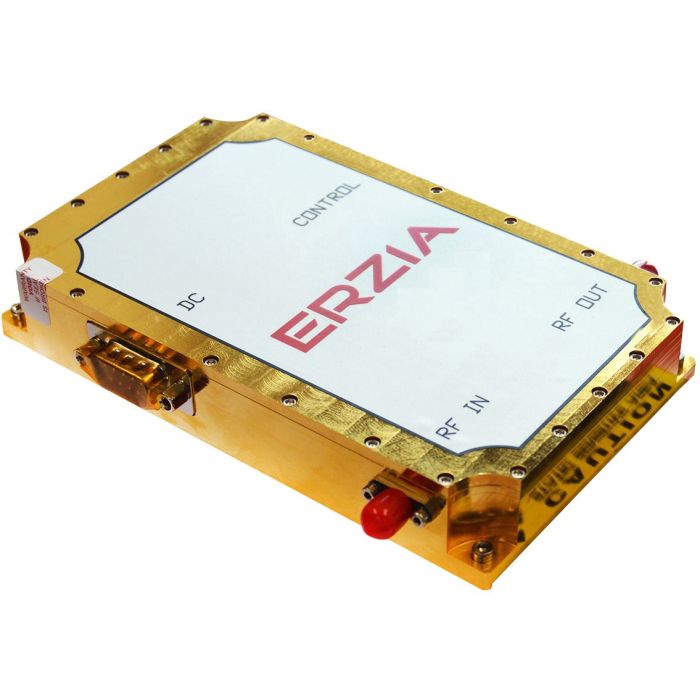

The ERZ-HPA-0490-0525-43 is a C Band amplifier providing up to 43 dBm and a gain of 44 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 4.9 |
| Frequency Stop (GHz) | 5.25 |
| Power Supply (V) | 28± 1V |
| Current (mA) | 4500 |
| Applications |
|
| Storage Temperature | -40°C to 71°C |
| Band | C Band |
| Output Power (dBm) | 43 |
| Gain (dB) | 44 |
| Operating Temperature | -19°C to 55°C |
| Connectors | SMA Female |
| Product Type | High Power Amplifier |
| Dimensions | 85 x 140 x 23 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
