Erzia
C Band High Power Amplifier

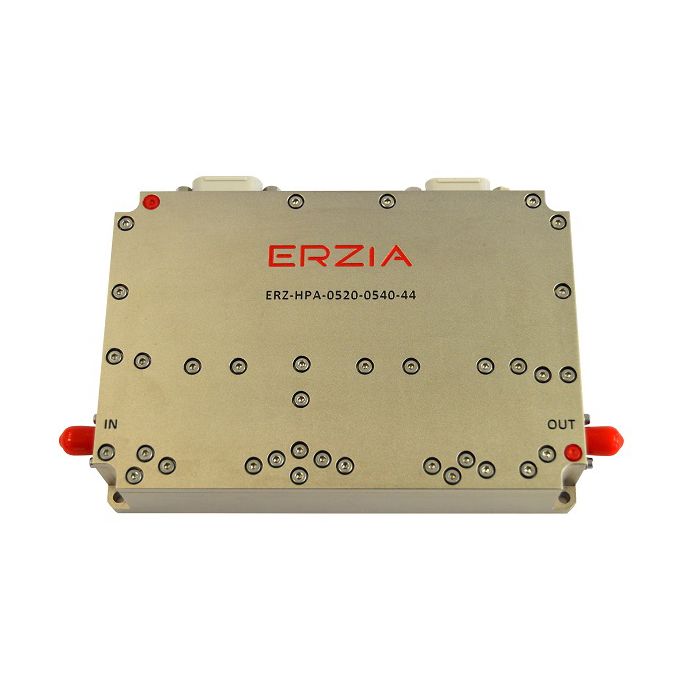

The ERZ-HPA-0520-0540-44 is a high power amplifier providing an output power of 46 dBm and a gain of 52 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 5.2 |
| Frequency Stop (GHz) | 5.4 |
| Power Supply (V) | 24± 4V |
| Current (mA) | 6875 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | C Band |
| Output Power (dBm) | 46 |
| Gain (dB) | 52 |
| Operating Temperature | -40°C to 70°C |
| Connectors | SMA Female |
| Product Type | High Power Amplifier |
| Dimensions | 125 x 85 x 25 mm |
