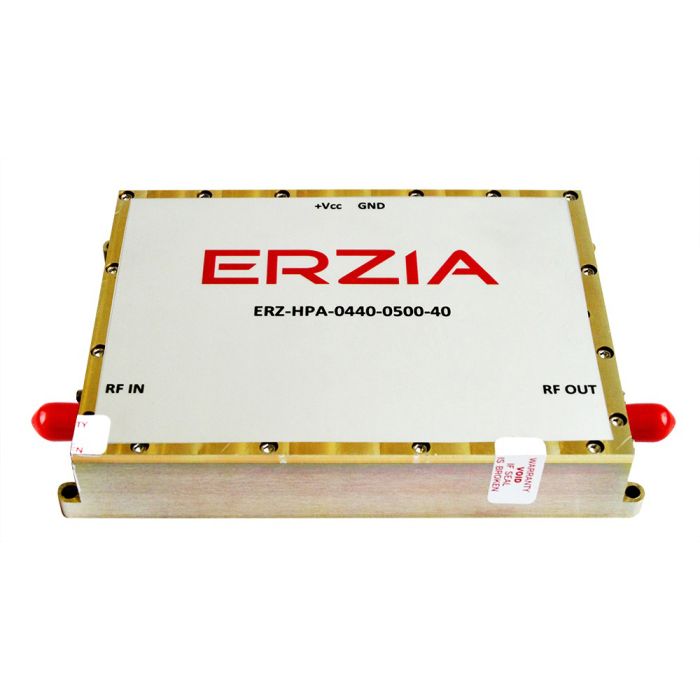

Erzia

C Band High Power Amplifier

The ERZ-HPA-0440-0500-40 is a C Band power amplifier providing up to 40 dBm and a gain of 37 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Frequency Start (GHz) 4.4
Frequency Stop (GHz) 5.0000
Power Supply (V) 15± 1V
Current (mA) 6000
Applications
  • Industrial
  • Laboratory
  • Satcom
  • Telecom
  • Space
  • Aerospace
  • Military
Storage Temperature -45°C to 85°C
Band C Band
Output Power (dBm) 41
Gain (dB) 37
Operating Temperature -35°C to 70°C
Connectors SMA Female
Product Type High Power Amplifier
Dimensions 115 x 75 x 17.5 mm
More Information
Attribute Value
Data Sheet Click here to view
