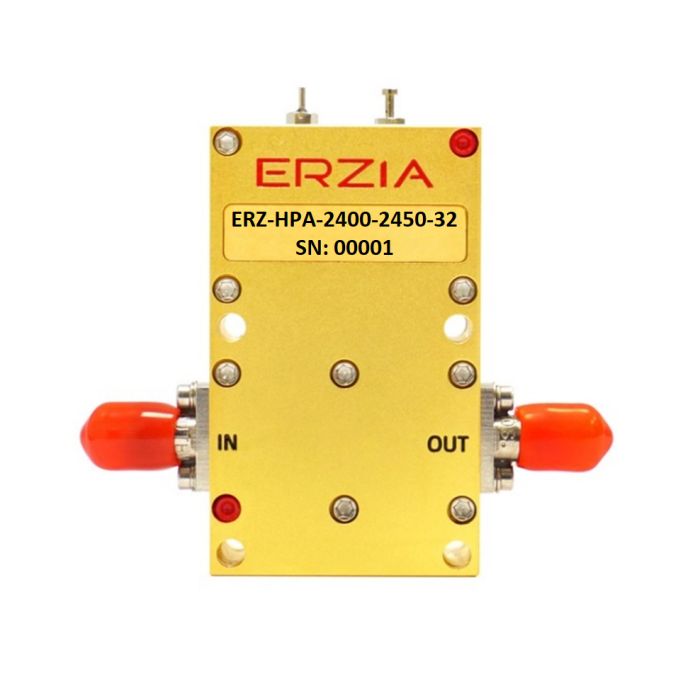

ERZ-HPA-2400-2450-32
ERZ-HPA-2400-2450-32
Erzia
K Band High Power Amplifier
The ERZ-HPA-2400-2450-32 is a Ka Band high power amplifier providing an output power of 33 dBm and gain of 35 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 24.0000 |
| Frequency Stop (GHz) | 24.5 |
| Power Supply (V) | 12± 4V |
| Current (mA) | 1041 |
| Storage Temperature | -55°C to 125°C |
| Band | K Band |
| Output Power (dBm) | 33 |
| Gain (dB) | 35 |
| Operating Temperature | -40°C to 85°C |
| Connectors | 2.92 mm Female |
| Applications |
|
| Dimensions | 30 x 50 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
