ERZ-HPA-1600-3300-24-E
ERZ-HPA-1600-3300-24-E
Erzia

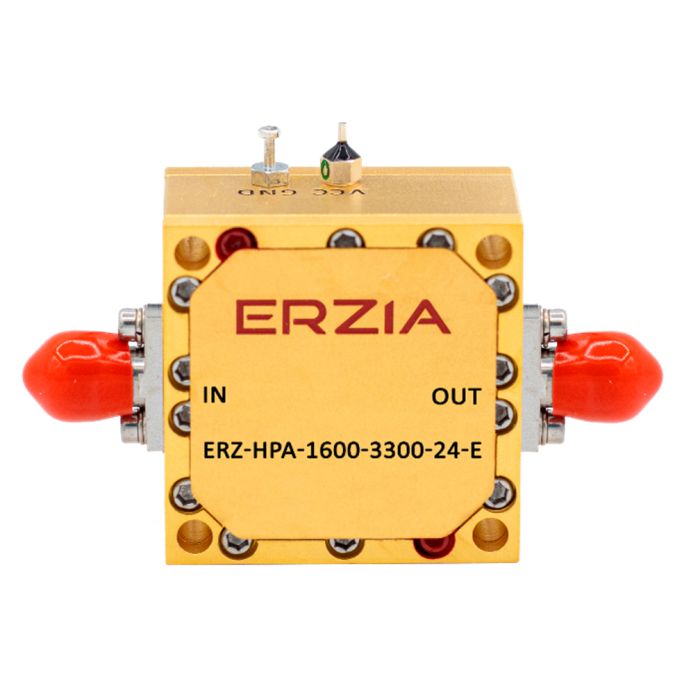

Wideband High Power Amplifier
The ERZ-HPA-1600-3300-24-E is a Wideband amplifier providing up to 24 dBm and a gain of 34 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 16.0000 |
| Frequency Stop (GHz) | 33.0000 |
| Power Supply (V) | 12± 4V |
| Current (mA) | 416 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 24 |
| Gain (dB) | 34 |
| Operating Temperature | -45°C to 85°C |
| Connectors | 2.92 mm Female |
| Product Type | High Power Amplifier |
| Dimensions | 30 x 30 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
