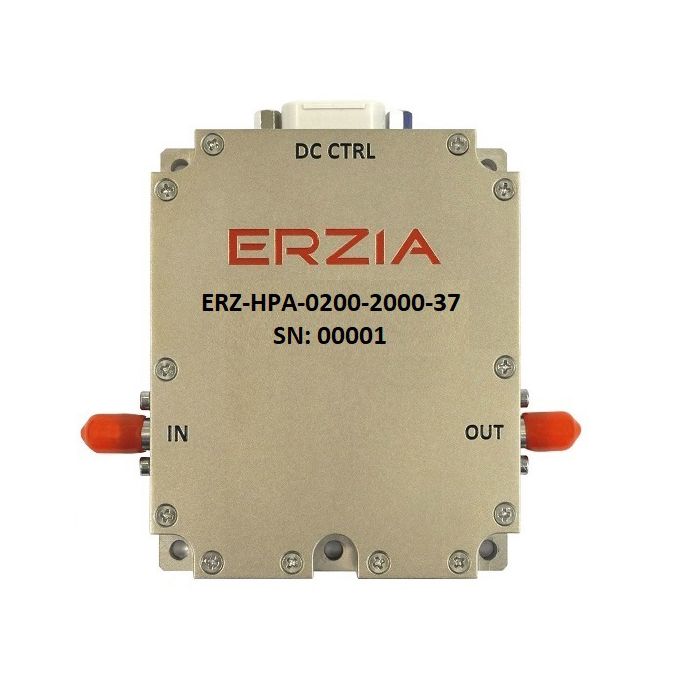

ERZ-HPA-0200-2000-37
ERZ-HPA-0200-2000-37
Erzia
Wideband High Power Amplifier
The ERZ-HPA-0200-2000-37 is a Wideband power amplifier providing 37 dBm and a gain of 36 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 2.0000 |
| Frequency Stop (GHz) | 20.0000 |
| Power Supply (V) | 28± 4V |
| Current (mA) | 1610 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 37 |
| Gain (dB) | 36 |
| Operating Temperature | -40°C to 85°C |
| Connectors | SMA Female |
| Product Type | High Power Amplifier |
| Dimensions | 80 x 100 x 21 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
