ERZ-HPA-2700-4200-27
ERZ-HPA-2700-4200-27
Erzia
Ka Band High Power Amplifier

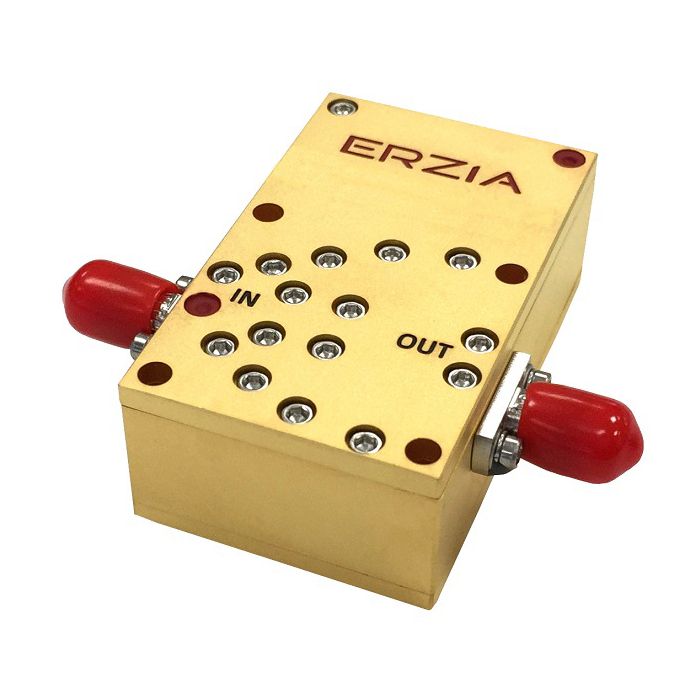

The ERZ-HPA-2700-4200-27 is a Ka Band amplifier providing up to 27 dBm and a gain of 35 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 27.0000 |
| Frequency Stop (GHz) | 42.0000 |
| Power Supply (V) | 12± 4V |
| Current (mA) | 583 |
| Storage Temperature | -55°C to 125°C |
| Band | Ka Band |
| Output Power (dBm) | 27 |
| Gain (dB) | 35 |
| Operating Temperature | -35°C to 70°C |
| Connectors | 2.42 mm Female |
| Applications |
|
| Dimensions | 30 x 50 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
