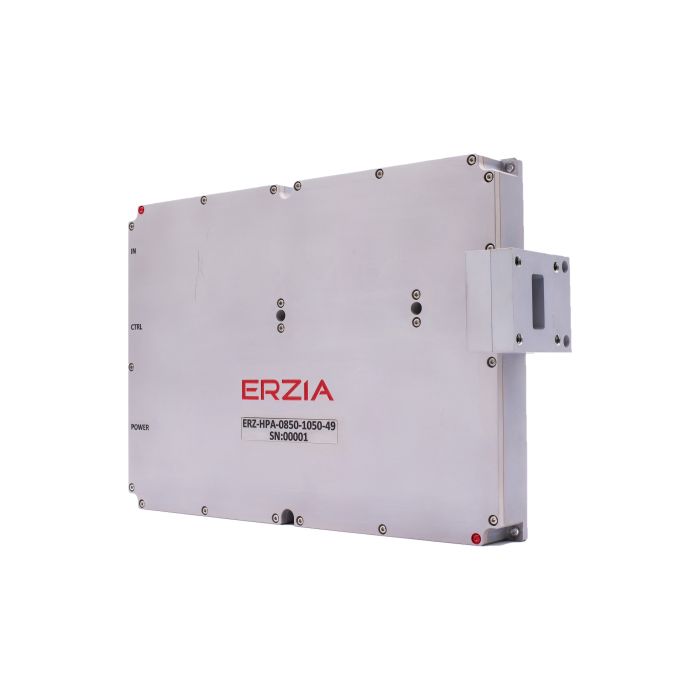

ERZ-HPA-0850-1050-49
ERZ-HPA-0850-1050-49
Erzia
X Band High Power Amplifier
The ERZ-HPA-0850-1050-49 is a high power amplifier providing an output power of 49 dBm and a gain of 43dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 8.5 |
| Frequency Stop (GHz) | 10.5 |
| Power Supply (V) | 28± 4V |
| Current (mA) | 45833 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | X Band |
| Output Power (dBm) | 49 |
| Gain (dB) | 43 |
| Operating Temperature | -40°C to 70°C |
| Connectors |
IN: SMA Female
OUT: WR90 UBR100 |
| Product Type | High Power Amplifier |
| Dimensions | 240 x 170 x 50 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
