ERZ-HPA-2000-3300-20
ERZ-HPA-2000-3300-20
Erzia

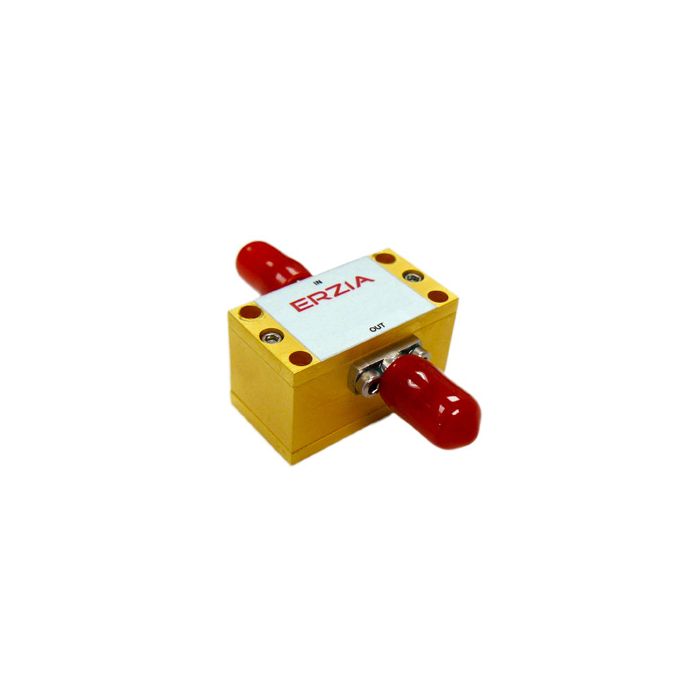

Wideband High Power Amplifier
The ERZ-HPA-2000-3300-20 is a Wideband amplifier providing up to 20 dBm at saturation and a gain over 22 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 20.0000 |
| Frequency Stop (GHz) | 33.0000 |
| Power Supply (V) | 12± 4V |
| Current (mA) | 300 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 20 |
| Gain (dB) | 22 |
| Operating Temperature | -35°C to 70°C |
| Product Type | High Power Amplifier |
| Dimensions | 16 x 30 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
