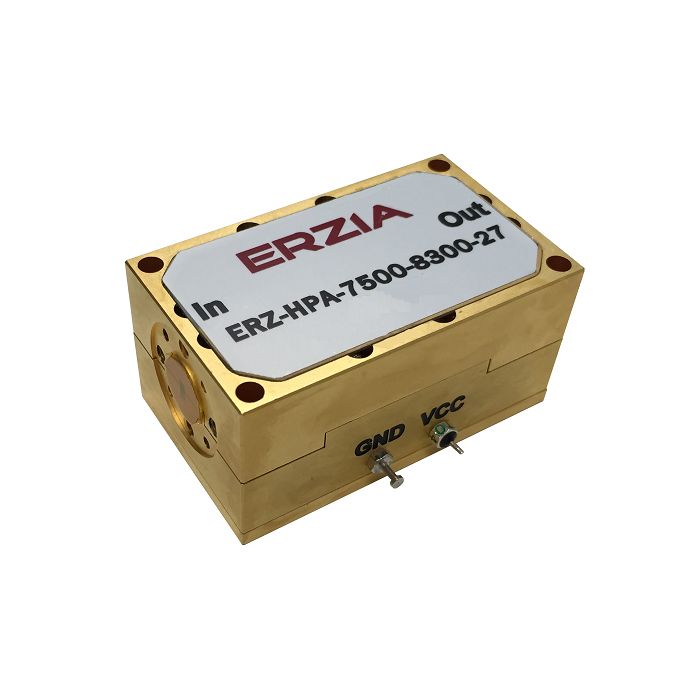

ERZ-HPA-7500-8300-27
ERZ-HPA-7500-8300-27
Erzia
W Band High Power Amplifier
The ERZ-HPA-7500-8300-27 is an W Band high power amplifier providing 24 dBm and a gain of 17 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 75.0000 |
| Frequency Stop (GHz) | 83.0000 |
| Power Supply (V) | 12± 4V |
| Current (mA) | 750 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | W Band |
| Output Power (dBm) | 24 |
| Gain (dB) | 17 |
| Operating Temperature | -35°C to 75°C |
| Connectors | WR12 |
| Product Type | High Power Amplifier |
| Dimensions | 50 x 30 x 24.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
