ERZ-HPA-0640-0720-42
ERZ-HPA-0640-0720-42
Erzia

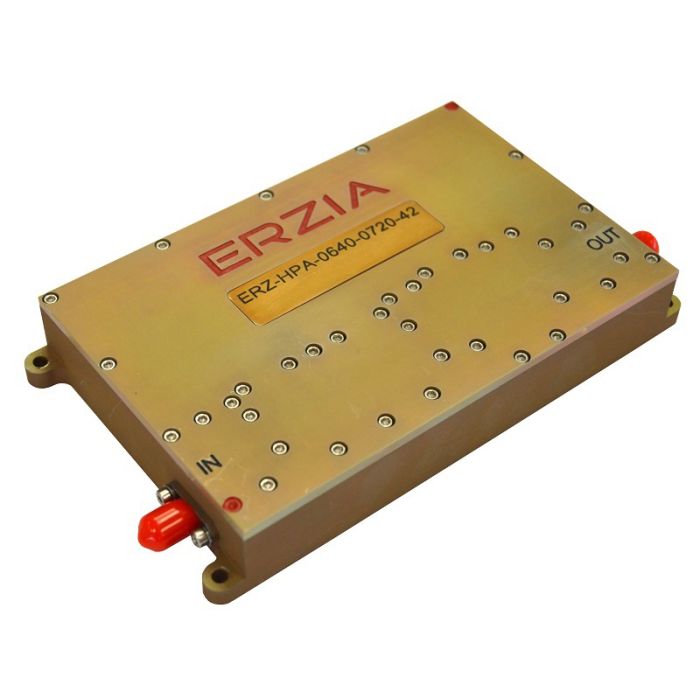

C Band High Power Amplifier
The ERZ-HPA-0640-0720-42 is a high power amplifier providing an output power of 42 dBm and a gain of 48 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 6.4 |
| Frequency Stop (GHz) | 7.2 |
| Power Supply (V) | 15± 3V |
| Current (mA) | 6333 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | C Band |
| Output Power (dBm) | 43 |
| Gain (dB) | 48 |
| Operating Temperature | -35°C to 75°C |
| Connectors | SMA Female |
| Product Type | High Power Amplifier |
| Dimensions | 112 x 75 x 20 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
