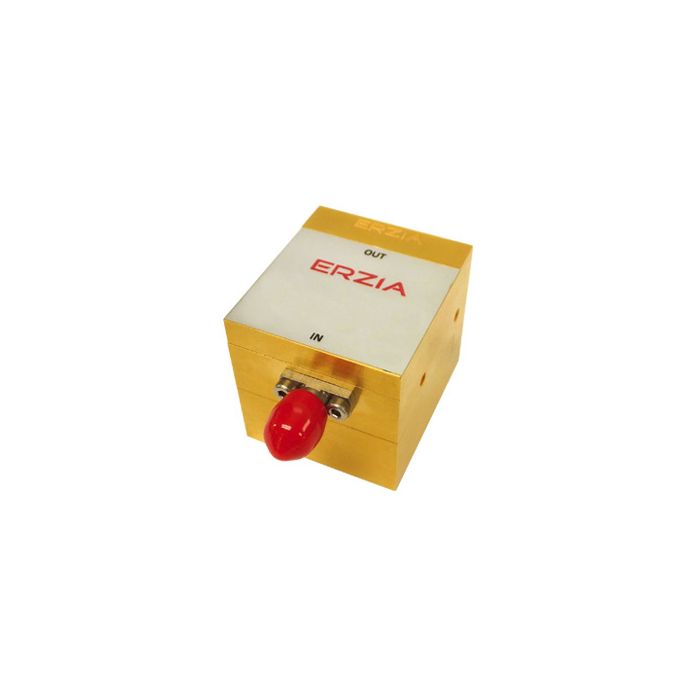

ERZ-HPA-4100-4600-30
ERZ-HPA-4100-4600-30
Erzia
Q Band High Power Amplifier
The ERZ-HPA-4100-4600-30 is a Q Band amplifier providing up to 30 dBm and a gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 41.0000 |
| Frequency Stop (GHz) | 46.0000 |
| Power Supply (V) | 5 |
| Current (mA) | 2400 |
| Applications |
|
| Storage Temperature | -50°C to 80°C |
| Band | Q Band |
| Output Power (dBm) | 30 |
| Gain (dB) | 30 |
| Operating Temperature | -35°C to 50°C |
| Connectors |
IN: 2.4 mm Female
OUT: WR22 |
| Product Type | High Power Amplifier |
| Dimensions | 30 x 34.5 x 30 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
