ERZ-HPA-5000-6600-19
ERZ-HPA-5000-6600-19
Erzia

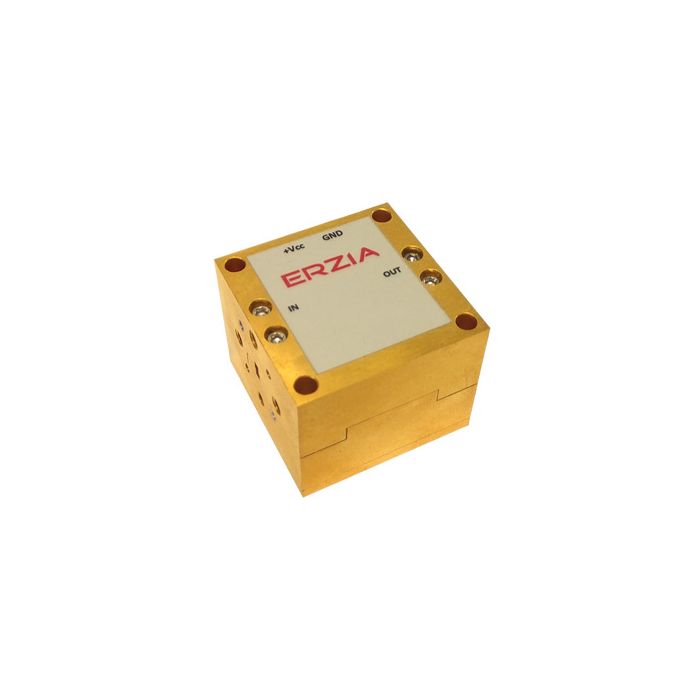

V Band High Power Amplifier
The ERZ-HPA-5000-6600-19 is a V Band amplifier providing an ouput power of 16 dBm and a gain of 22 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 50.0000 |
| Frequency Stop (GHz) | 66.0000 |
| Power Supply (V) | 12± 4V |
| Current (mA) | 100 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | V Band |
| Output Power (dBm) | 16 |
| Gain (dB) | 22 |
| Operating Temperature | -45°C to 85°C |
| Connectors | WR15 |
| Product Type | High Power Amplifier |
| Dimensions | 30 x 30 x 22.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
