ERZ-LNA-0050-1800-15-3
ERZ-LNA-0050-1800-15-3
Erzia

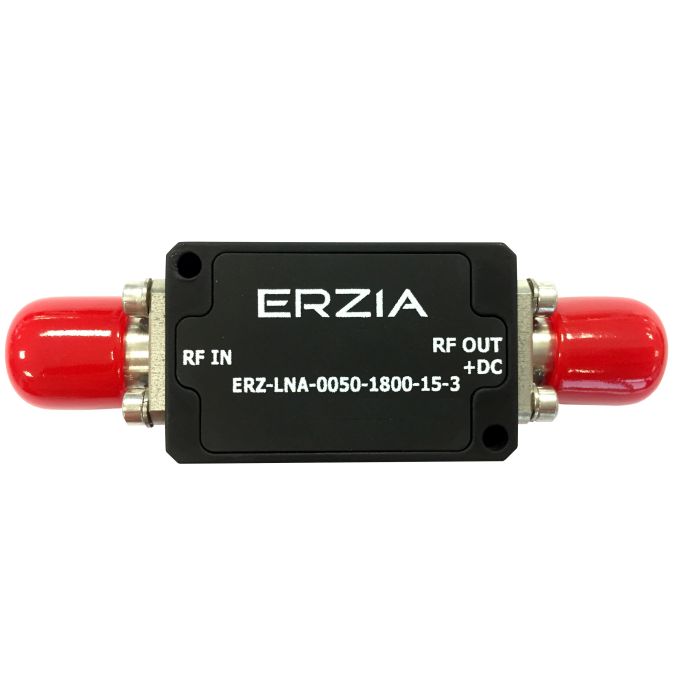

Wideband Low Noise Amplifier
The ERZ-LNA-0050-1800-15-3 is a low noise amplifier providing an equalized gain with a noise figure below 5.5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 0.5 |
| Frequency Stop (GHz) | 18.0000 |
| Power Supply (V) | 15± 1V |
| Current (mA) | 133 |
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 17 |
| Gain (dB) | 15 |
| Operating Temperature | -40°C to 85°C |
| Connectors | TNC Female |
| Dimensions | 40.6 x 25.4 x 20.35 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
