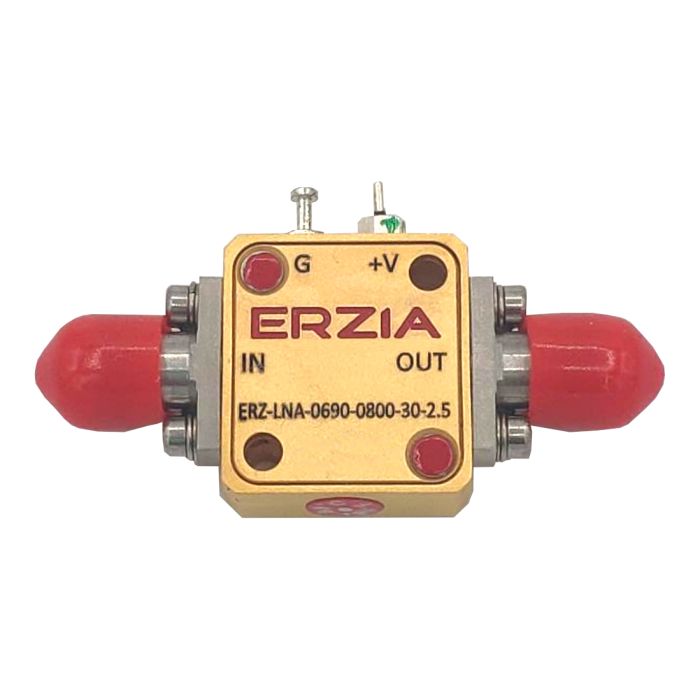

ERZ-LNA-0690-0800-30-2.5
ERZ-LNA-0690-0800-30-2.5
Erzia
C Band Low Noise Amplifier
The ERZ-LNA-0690-0800-30-2.5 is a C Band amplifier providing a gain of 30 dB and a noise figure of 2 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 6.9 |
| Frequency Stop (GHz) | 8.0000 |
| Power Supply (V) | 15± 1V |
| Current (mA) | 100 |
| Storage Temperature | -55°C to 125°C |
| Band | C Band |
| Output Power (dBm) | 20 |
| Gain (dB) | 30 |
| Operating Temperature | -40°C to 85°C |
| Connectors | SMA Female |
| Product Type | Low Noise Amplifier |
| Dimensions | 16.3 x 15 x 7.3 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
